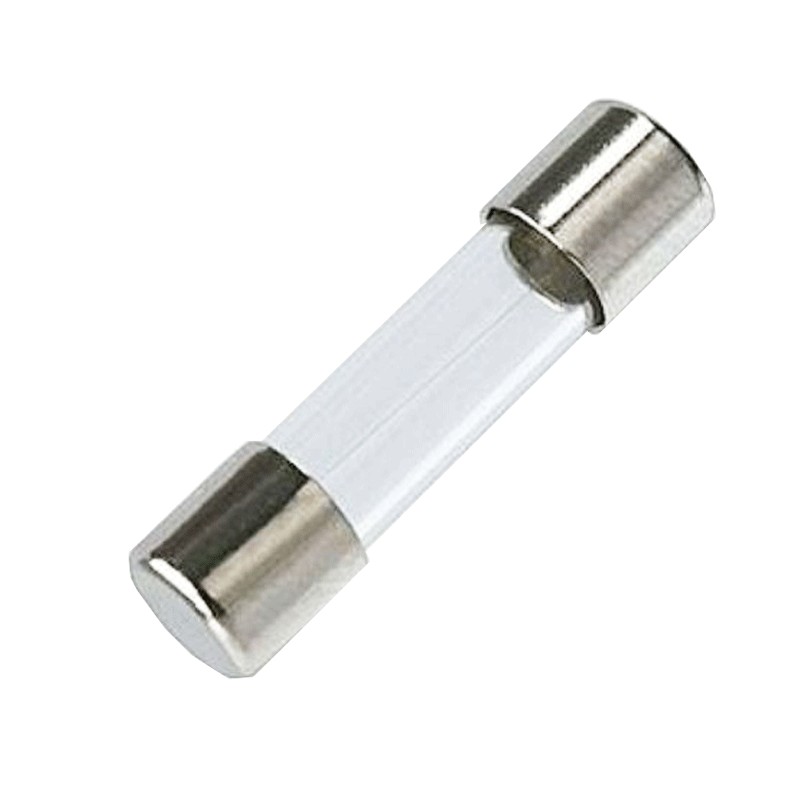

Italweber cylindrical fuse 5 x 20 mm standard 315mA 250V 0100315

Italweber
Italweber
ITW 0100315 8024873011187

Italweber cylindrical fuse, with the following characteristics:

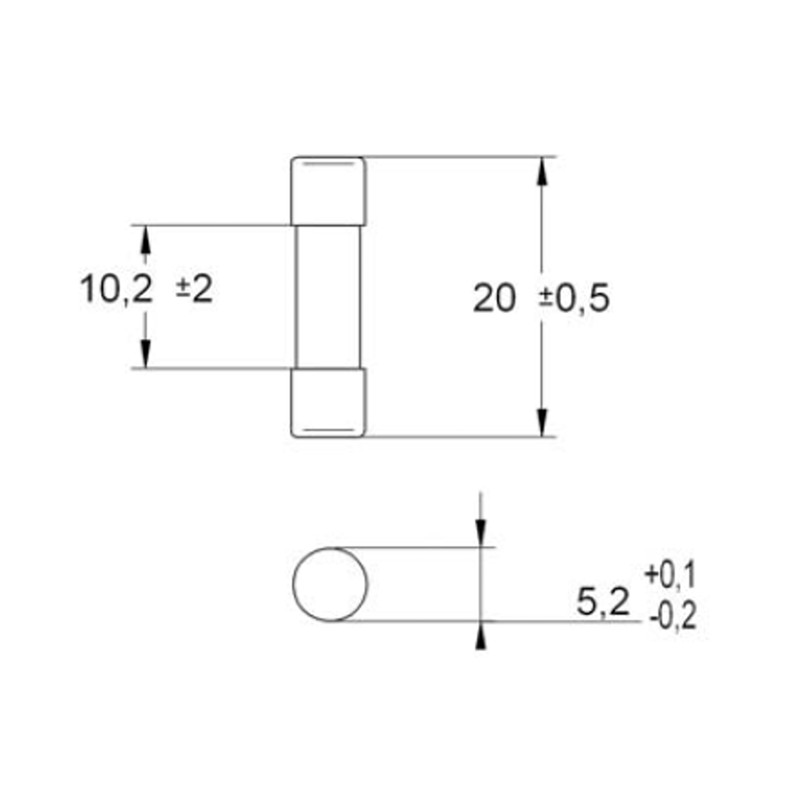

  • Fuse gauge dimensions 5 x 20 mm
  • Fuse Standard type
  • Rapid intervention characteristic (F)
  • Rated current 315mA
  • Voltage 250V
  • Breaking capacity Ik 35
Do you have questions about this product or did you not find what you were looking for? Ask us!
Italweber cylindrical fuse 5 x 20 mm standard 315mA 250V 0100315
€0.09
€0.09

The minimum purchase order quantity for the product is 10.

€0.09
Tax included
Calculate shipping cost
Items Available: 270
Further availability of the manufacturer
€0.09

The minimum purchase order quantity for the product is 10.

Buy it within and receive it from Tuesday, 23 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

An electrical fuse (simply called a fuse) is an electrical device that protects a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.

Features:

  • Italweber series
  • Glass body
  • Silver plated copper contacts
  • Fuse gauge dimensions 5 x 20 mm
  • Fuse Standard type
  • Fast tripping characteristic (F)
  • Compliant with standards CEI 32-6/1, CEI 32-6/2, IEC 60127-1, IEC 60127-2
  • Rated current 315mA
  • Voltage 250V
  • Interrupting capacity Ik 35
  • Operating temperature -40°C / +90°C
  • Maximum altitude 2000 meters a.s.l.
  • Relative humidity < 50% at 40°C

There are no reviews

Data sheet

Type:
Cylinder fuses
Size:
5X20
Voltage:
250V
Amps:
0.315A
Material:
Glass
