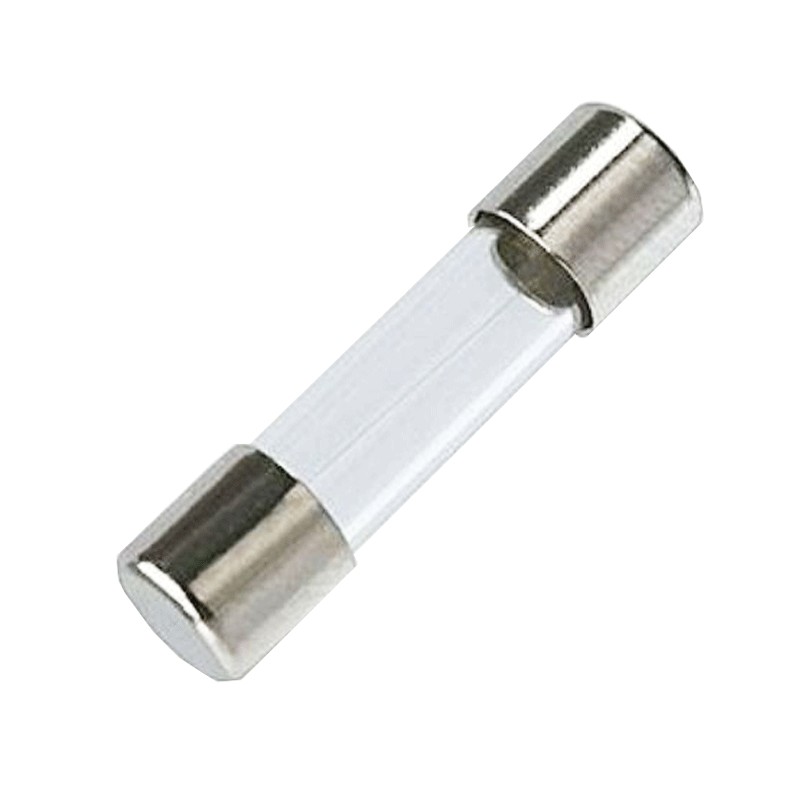

Italweber cylindrical fuse 5 x 20 mm standard 1A 250V 0101001
ITW 0101001
8024873011231
Italweber cylindrical fuse, with the following characteristics:
- Fuse gauge dimensions 5 x 20 mm
- Fuse Standard type
- Fast tripping characteristic (F)
- Nominal current 1A
- Voltage 250V
- Interrupting capacity Ik 35
![](https://www.elettronew.com/41342-large_default/italweber-cylindrical-fuse-5-x-20-mm-standard-1a-250v-0101001.jpg)
Italweber cylindrical fuse 5 x 20 mm standard 1A 250V 0101001
€0.15
€0.15
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 4121
An electrical fuse (simply called a fuse) is an electrical device that protects a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.
Features:
- Italweber series
- Glass body
- Silver plated copper contacts

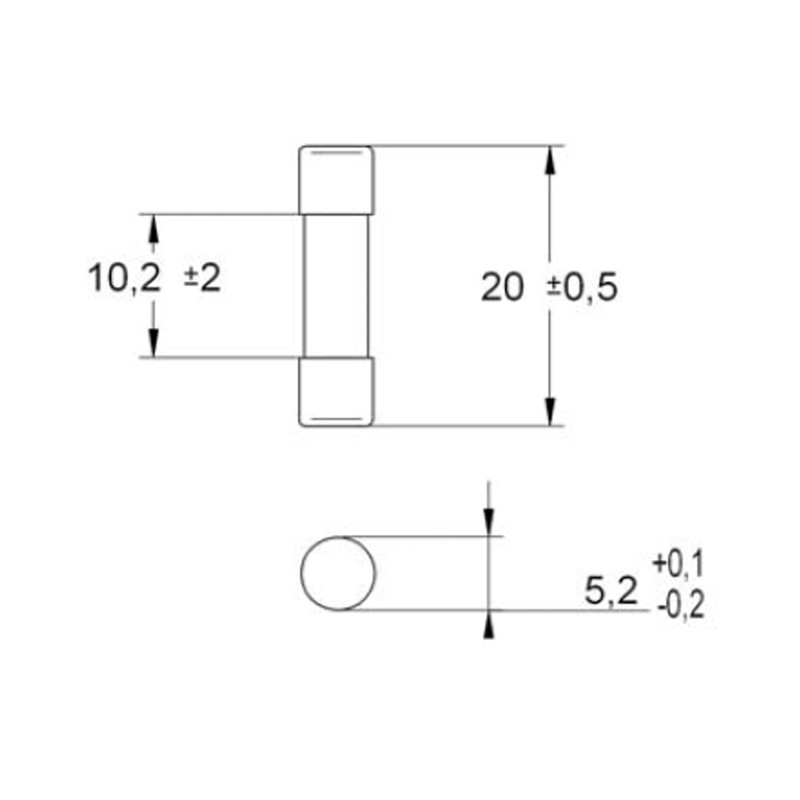

- Fuse gauge dimensions 5 x 20 mm
- Fuse Standard type
- Fast tripping characteristic (F)
- Compliant with standards CEI 32-6/1, CEI 32-6/2, IEC 60127-1, IEC 60127-2
- Rated current 1A
- Voltage 250V
- Interrupting capacity Ik 35
- Operating temperature -40°C / +90°C
- Maximum altitude 2000 meters above sea level
- Relative humidity < 50% at 40°C
Data sheet
- Type:
- Cylinder fuses
- Size:
- 5X20
- Voltage:
- 250V
- Amps:
- 1A
- Material:
- Glass
