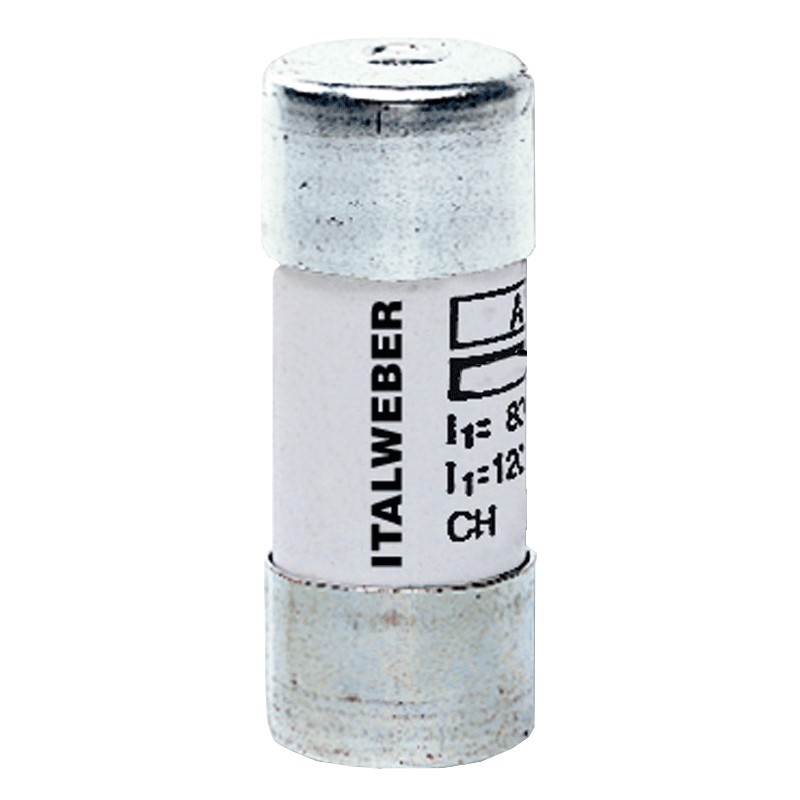

Italweber cylindrical fuse 22 x 58 mm CH22 gG 80A 500V 1441080

Italweber
Italweber
ITW 1441080 8024873001195

Italweber cylindrical fuse, with the following characteristics:

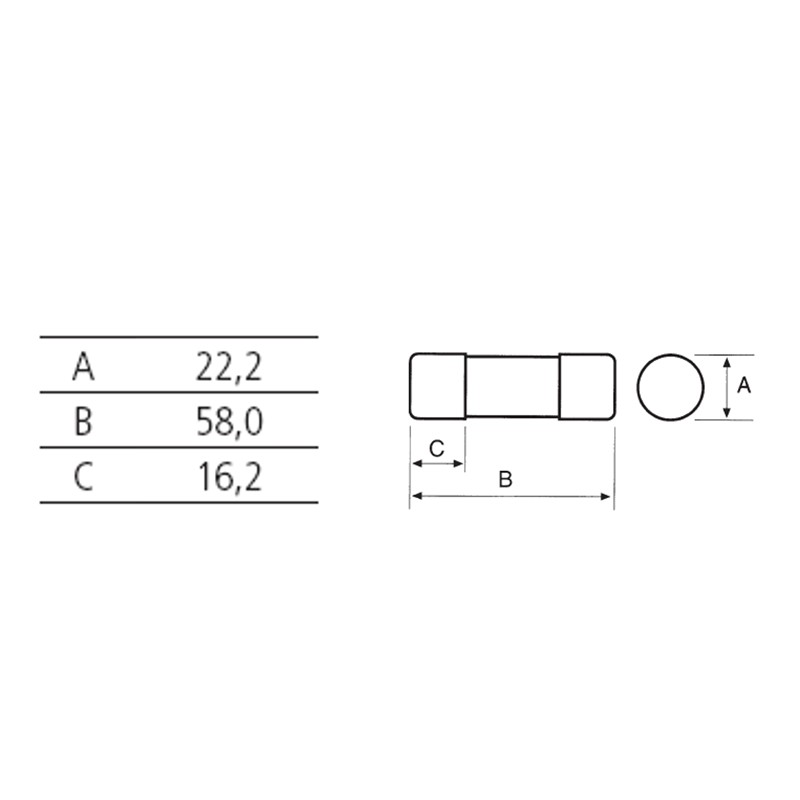

  • Fuse gauge dimensions 22 x 58 mm
  • Fuse series CH22
  • Intervention characteristic gG
  • Nominal current 80A
  • Rated voltage 500 Vac
  • Breaking capacity 120kA
Do you have questions about this product or did you not find what you were looking for? Ask us!
Italweber cylindrical fuse 22 x 58 mm CH22 gG 80A 500V 1441080
€2.64
€2.64

€2.64
Tax included
Calculate shipping cost
Items Available: 80
Further availability of the manufacturer
€2.64

Buy it within and receive it from Tuesday, 23 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

An electrical fuse (simply called a fuse) is an electrical device that protects a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.

Features:

  • Italweber Series
  • Fuse gauge dimensions 22 x 58 mm
  • Fuse series CH22
  • Tripping characteristic gG
  • Compliant with standards CEI 32-1, CEI 32-4, IEC 60269-1, IEC 60269-4
  • Rated current 80A
  • Rated voltage 500 Vac
  • Steatite body
  • Contacts in silvered copper
  • Breaking capacity 120kA

There are no reviews

Data sheet

Type:
Cylinder fuses
Size:
22x58 fuse sizes
Voltage:
500VAC
Breaking capacity:
120KA
Amps:
80A
Material:
Steatite
