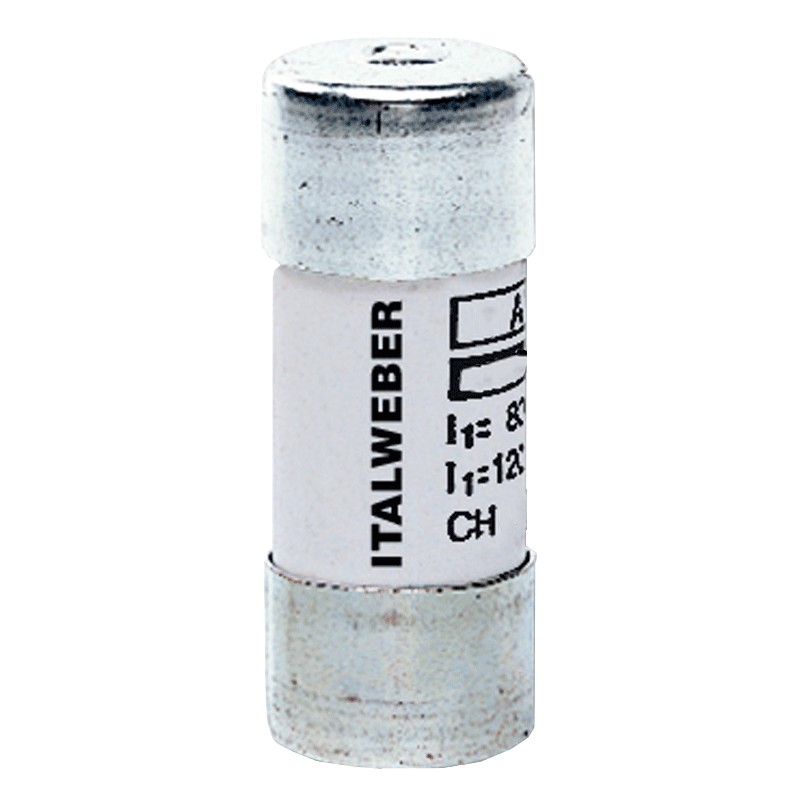

Italweber cylindrical fuse 22 x 58 mm CH22 gG 125A 400V 1441100
ITW 1441100
8024873001218
Italweber cylindrical fuse, with the following characteristics:
- Fuse gauge dimensions 22 x 58 mm
- Fuse series CH22
- Intervention characteristic gG
- Rated current 125A
- Nominal voltage 400 Vac
- Breaking capacity 120kA
![](https://www.elettronew.com/41227-large_default/italweber-cylindrical-fuse-22-x-58-mm-ch22-gg-125a-400v-1441100.jpg)
Italweber cylindrical fuse 22 x 58 mm CH22 gG 125A 400V 1441100
€2.60
€2.60
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 247
An electrical fuse (simply called a fuse) is an electrical device that protects a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.
Features:
- Italweber Series
- Fuse gauge dimensions 22 x 58 mm
- Fuse series CH22
- Tripping characteristic gG
- Compliant with standards CEI 32-1, CEI 32-4, IEC 60269-1, IEC 60269-4
- Rated current 125A
- Rated voltage 400 Vac
- Steatite body
- Contacts in silvered copper
- Breaking capacity 120kA
Data sheet
- Type:
- Cylinder fuses
- Size:
- 22x58 fuse sizes
- Voltage:
- 400V
- Breaking capacity:
- 120KA
- Amps:
- 125A
- Material:
- Steatite
