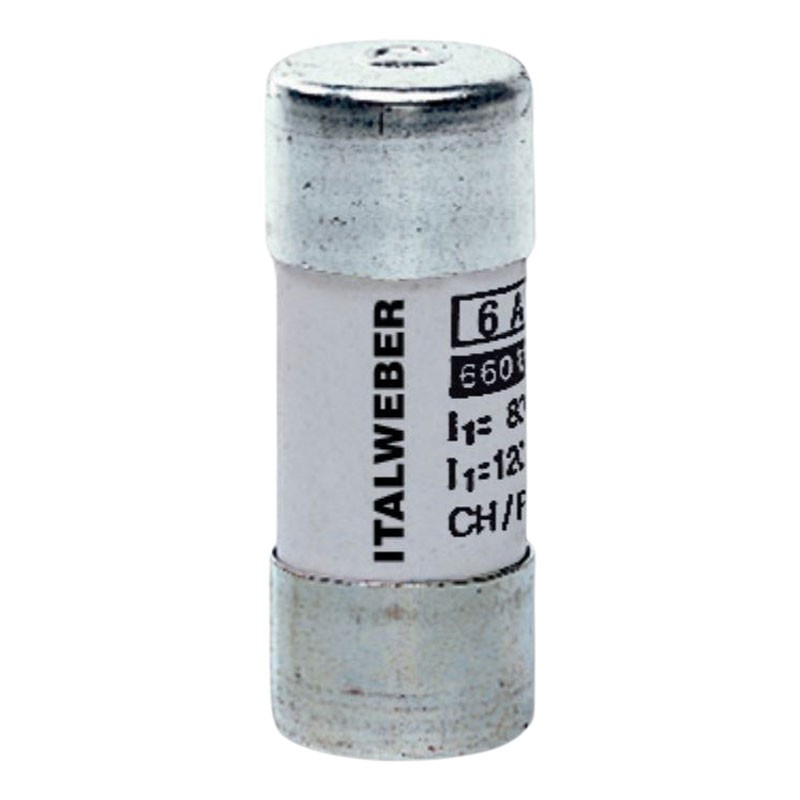

Italweber cylindrical fuse 14 x 51 mm CH14 gG 40A 500V 1431040

Italweber
Italweber
ITW 1431040 8024873000884

Italweber cylindrical fuse, with the following characteristics:

  • Fuse gauge dimensions 14 x 51 mm
  • Fuse series CH14
  • Intervention characteristic gG
  • Rated current 40A
  • Rated voltage 500 Vac
  • Breaking capacity 120kA
Do you have questions about this product or did you not find what you were looking for? Ask us!
Italweber cylindrical fuse 14 x 51 mm CH14 gG 40A 500V 1431040
€1.44
€1.44

€1.44
Tax included
Calculate shipping cost
Items Available: 161
Further availability of the manufacturer
€1.44

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

An electrical fuse (simply called a fuse) is an electrical device that protects a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.

Features:

  • Italweber Serie
  • Fuse gauge dimensions 14 x 51 mm
  • Fuse series CH14
  • Intervention characteristic gG
  • Compliant with standards CEI 32-1, CEI 32-4, IEC 60269-1, IEC 60269-2
  • Rated current 40A
  • Rated voltage 500 Vac
  • Steatite body
  • Contacts in silvered copper
  • Breaking capacity 120kA

There are no reviews

Data sheet

Type:
Cylinder fuses
Size:
14X51
Voltage:
500VAC
Breaking capacity:
120KA
Amps:
40A
Material:
Steatite
