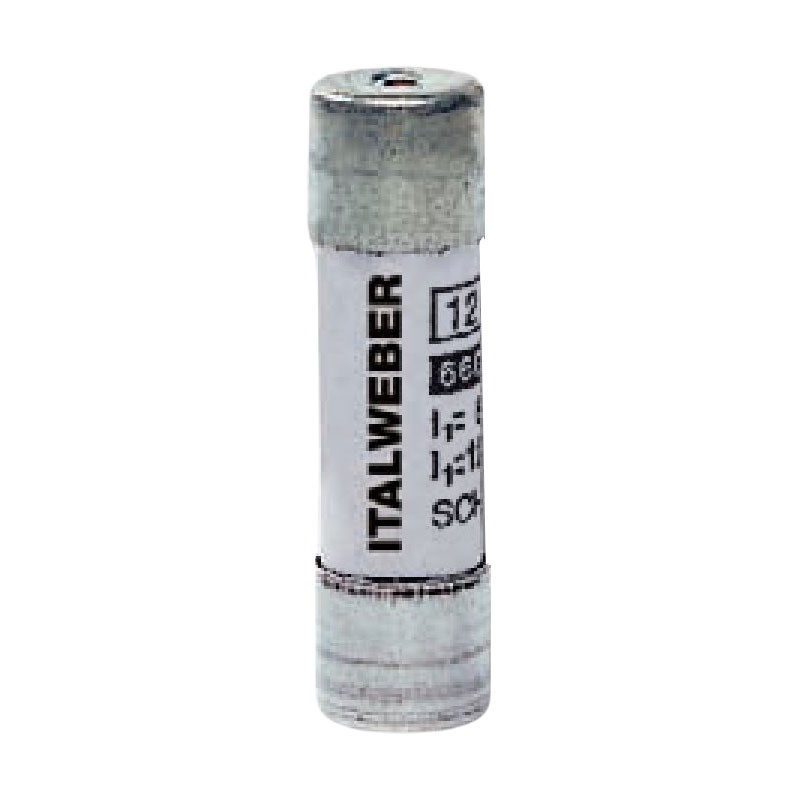

Italweber cylindrical fuse 10,3 x 38 mm CH10 aM 32A 400V 1422032
ITW 1422032
8024873001775
Italweber cylindrical fuse, with the following characteristics:
- Fuse gauge dimensions 10,3 x 38 mm
- Fuse series CH10
- Intervention characteristic aM
- Rated current 32A
- Nominal voltage 400 Vac
- Breaking capacity 120kA
€0.59
Items Available: 145
: 9
An electrical fuse (simply called a fuse) is an electrical device that protects a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.
Features:
- Italweber Series
- Fuse gauge dimensions 10,3 x 38 mm
- Fuse series CH10
- Intervention characteristic aM
- Compliant with standards CEI 32-1, CEI 32-4, IEC 60269-1, IEC 60269-2
- Rated current 32A
- Rated voltage 400 Vac
- Steatite body
- Contacts in silvered copper
- Breaking capacity 120kA
- Operating temperature - 50°C / + 90°C
- Storage temperature - 60°C / + 100°C
Data sheet
- Type: Cylinder fuses
- Size: 10.3X38
- Voltage: 400VAC
- Breaking capacity: 120KA
- Amps: 32A
- Material: Steatite
