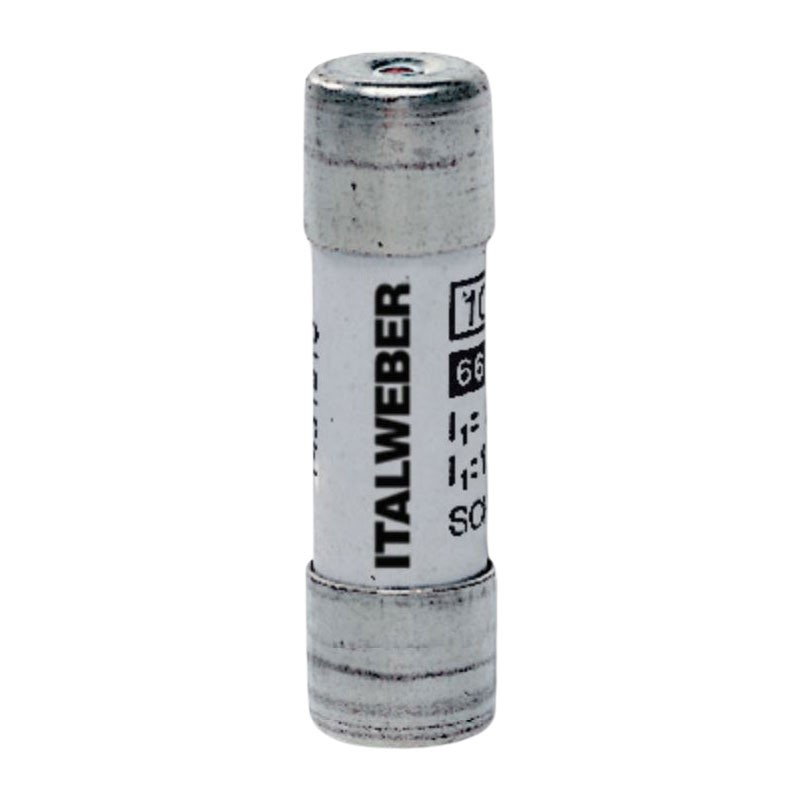

Italweber cylindrical fuse 10,3 x 38 mm CH10 aM 16A 500V 1422016
ITW 1422016
8024873001744
Italweber cylindrical fuse, with the following characteristics:
- Fuse gauge dimensions 10,3 x 38 mm
- Fuse series CH10
- Intervention characteristic aM
- Rated current 16A
- Rated voltage 500 Vac
- Breaking capacity 120kA
![](https://www.elettronew.com/75277-large_default/italweber-cylindrical-fuse-103-x-38-mm-ch10-am-16a-500v-1422016.jpg)
Italweber cylindrical fuse 10,3 x 38 mm CH10 aM 16A 500V 1422016
€0.82
€0.82
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 545
An electrical fuse (simply called a fuse) is an electrical device that protects a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.
Features:
- Italweber Serie
- Fuse gauge dimensions 10,3 x 38 mm
- Fuse series CH10
- Intervention characteristic aM
- Compliant with standards CEI 32-1, CEI 32-4, IEC 60269-1, IEC 60269-2
- Rated current 16A
- Rated voltage 500 Vac
- Steatite body
- Contacts in silvered copper
- Interrupting capacity 120kA
- Operating temperature - 50°C / + 90°C
- Storage temperature - 60°C / + 100°C
Data sheet
- Type:
- Cylinder fuses
- Size:
- 10.3X38
- Voltage:
- 500VAC
- Breaking capacity:
- 120KA
- Amps:
- 16A
- Material:
- Steatite
