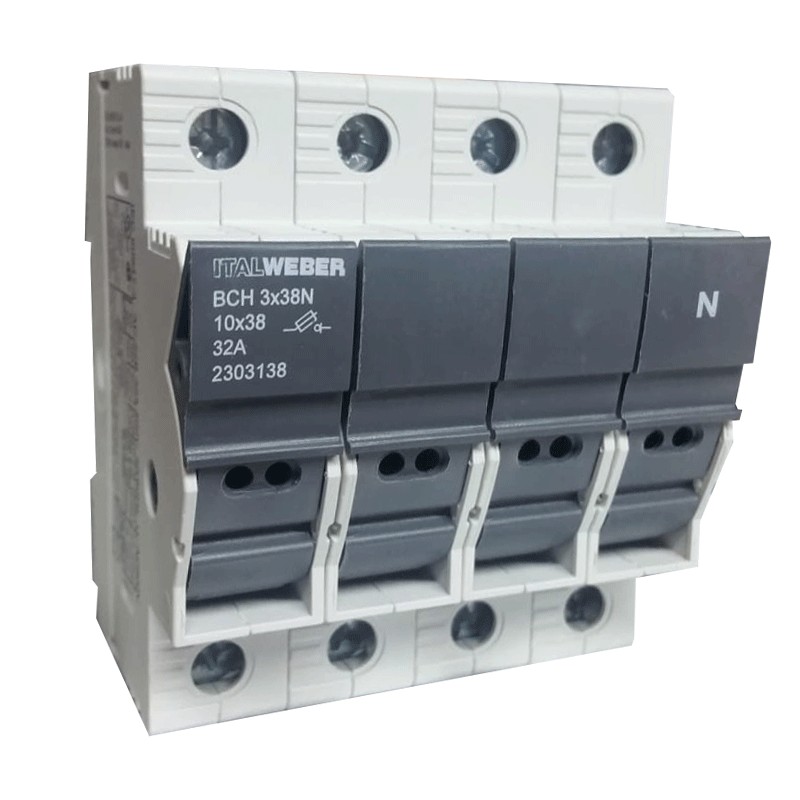

Italweber BCH fuse holder for fuses 10,3 x 38 mm 3P+N 2303138
ITW 2303138
8024873018827
Italweber BCH series fuse holder, with the following characteristics
- Fuse gauge 10,3 x 38 mm
- Type three-pole + neutral
- Current In 32A
- Rated voltage 690 Vac
- Insulation voltage 800 Vac
- 3 poles +N
- 4 modules
- Short circuit current withstand 100kA
€16.31
Items Available: 4
Frequently bought together
These fuse holders are manufactured taking into account the latest technologies. The body is made of self-extinguishing thermoplastic materials resistant to high temperatures, while the contacts are made of silver-plated copper. All fuse holders are pluggable.
Features:
- Italweber Series
- Fuse gauge 10,3 x 38 mm
- Three-pole + neutral type
- Current In 32A
- Rated voltage 690 Vac
- Insulation voltage 800 Vac
- 3 poles +N
- 4 modules
- Operating temperature -40°C / + 100°C
- Resistance to short circuit current 100kA
- Degree of protection IP20
There are no reviews
Data sheet
- Type: Fuse holder
- Size: 10.3X38
- Voltage: 690VAC
- Modules: 4
- Poles: 3P+N
- Amps: 32A
