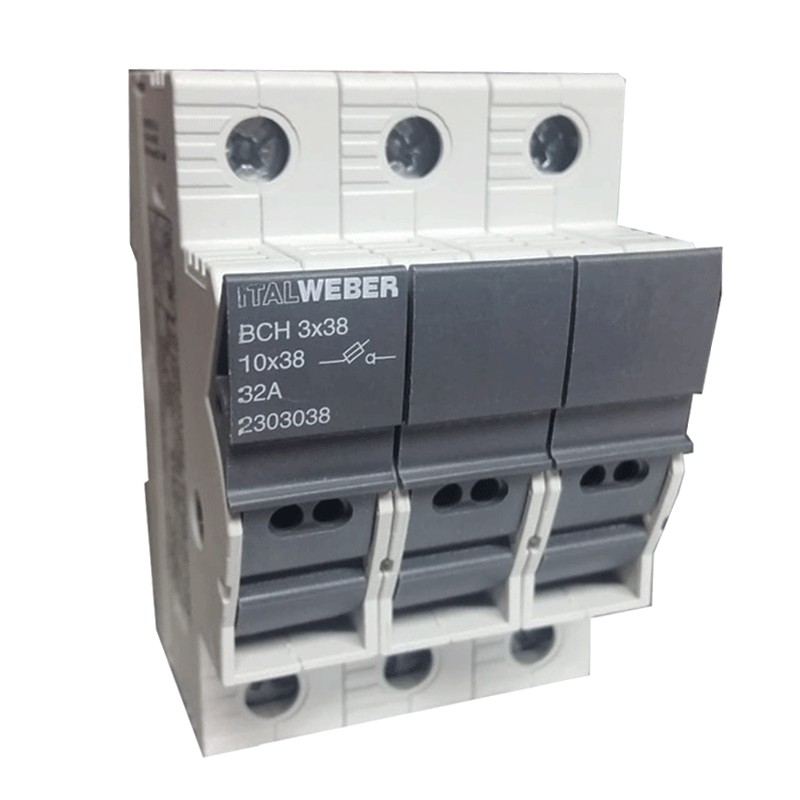

Italweber BCH fuse holder for fuses 10,3 x 38 mm 2303038
ITW 2303038
8024873019060
Italweber sectionable fuse holder BCH series, with the following characteristics
- Fuse gauge 10,3 x 38 mm
- Three-pole type
- Current In 32A
- Rated voltage 690 Vac
- Insulation voltage 800 Vac
- 3 poles
- 3 modules
- Short-circuit current withstand 100kA
€8.23
Items Available: 7
: 3
Frequently bought together
These fuse holders are manufactured taking into account the latest technologies. The body is made of self-extinguishing thermoplastic materials resistant to high temperatures, while the contacts are made of silver-plated copper. All fuse holders are pluggable.
Features:
- Italweber Series
- Fuse gauge 10,3 x 38 mm
- Three-pole type
- Current In 32A
- Rated voltage 690 Vac
- Insulation voltage 800 Vac
- 3 poles
- 3 modules
- Operating temperature -40°C / + 100°C
- Resistance to short circuit current 100kA
- Degree of protection IP20
There are no reviews
Data sheet
- Type: Fuse holder
- Size: 10.3X38
- Voltage: 690VAC
- Modules: 3
- Poles: 3P
- Amps: 32A
