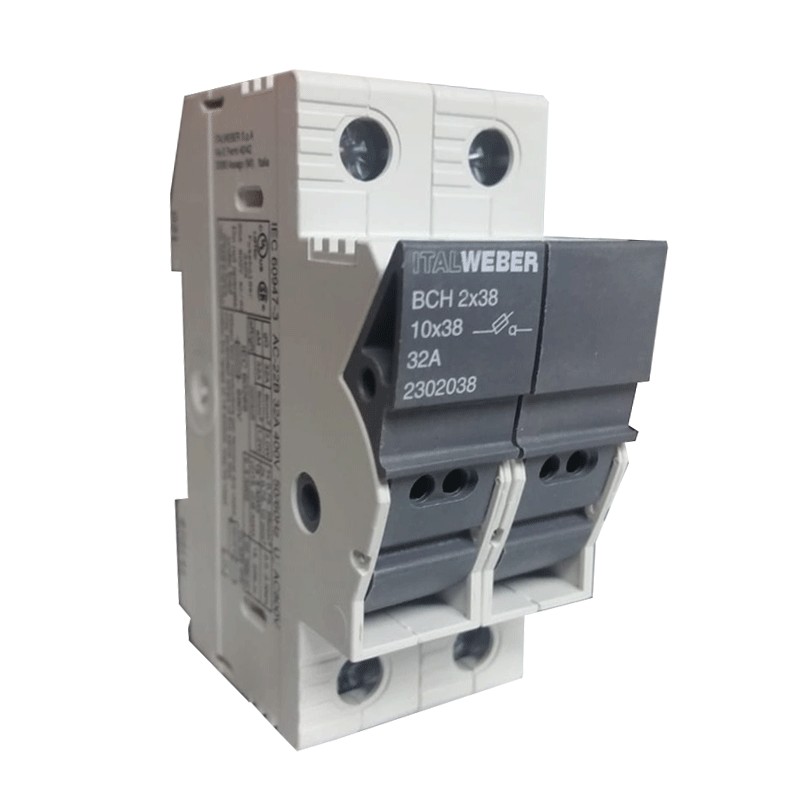

Italweber BCH fuse holder for fuses 10,3 x 38 mm 2302038
ITW 2302038
8024873000624
Italweber sectionable fuse holder BCH series, with the following characteristics
- Fuse gauge 10,3 x 38 mm
- Bipolar type
- Current In 32A
- Rated voltage 690 Vac
- Insulation voltage 800 Vac
- 2 poles
- 2 modules
- Short circuit current withstand 100kA
![](https://www.elettronew.com/41045-large_default/italweber-bch-fuse-holder-for-fuses-103-x-38-mm-2302038.jpg)
Italweber BCH fuse holder for fuses 10,3 x 38 mm 2302038
€9.24
€9.24
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 19
Frequently bought together
These fuse holders are manufactured taking into account the latest technologies. The body is made of self-extinguishing thermoplastic materials resistant to high temperatures, while the contacts are made of silver-plated copper. All fuse holders are pluggable.
Features:
- Italweber Series
- Fuse gauge 10,3 x 38 mm
- Bipolar type
- Current In 32A
- Rated voltage 690 Vac
- Insulation voltage 800 Vac
- 2 poles
- 2 modules
- Operating temperature -40°C / + 100°C
- Resistance to short circuit current 100kA
- Degree of protection IP20
Data sheet
- Type:
- Fuse holder
- Size:
- 10.3X38
- Voltage:
- 690VAC
- Modules:
- 2
- Poles:
- 2P
- Amps:
- 32A
