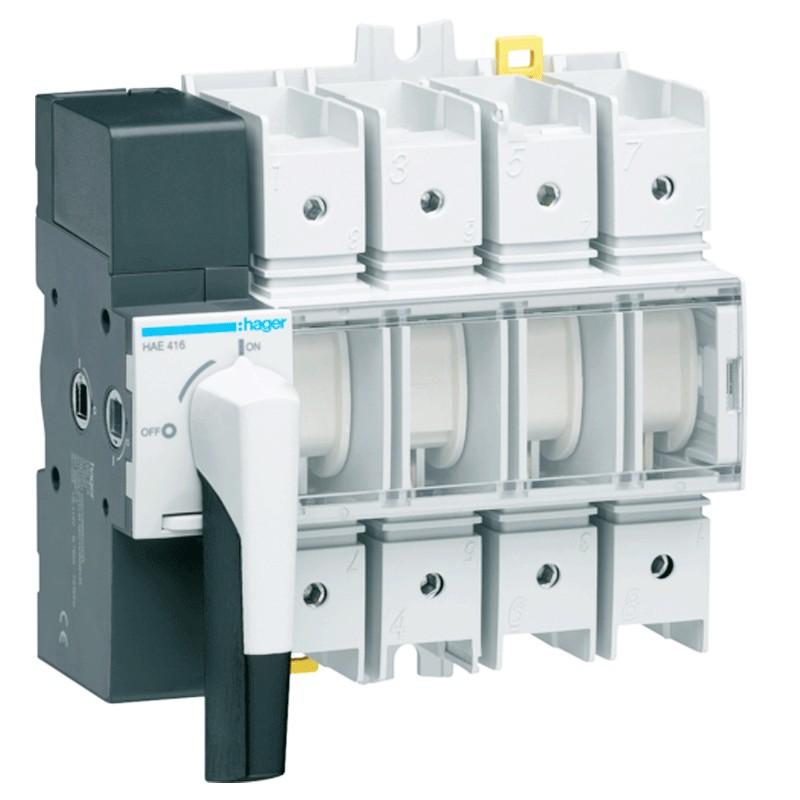

Hager 4P 160A 8 modules disconnector with rotary control HAE416
HAG HAE416
3250613140427
Hager disconnect switch with compact rotary control, with the following characteristics:
- Nominal operating voltage AC 380 / 415 Vac
- Rated insulation voltage 800 V
- Rated fault holding current 8000 V
- Nominal current In 160A
- 8 modules
- 4 poles
- Degree of protection of the enclosure IP20
- DIN rail mounting
€190.79
Items Available: 3
Thedisconnector, otherwise called voltage isolator, has the same features of a switch, but on a larger scale: it is, in fact, responsible for closing the flow of energy to the power plants. This serves mainly to ensure the safety of the plant and primarily of the people who work inside since one of its peculiarities is to separate the flow of energy from the working environments. Another peculiarity of this instrument is the ability to detect defects in the electrical flow and isolate them. When the defect is corrected, the disconnector will ensure that the current flows normally again.
Features:
- Hager Series
- Nominal operating voltage 380 / 415 Vac
- Rated insulation voltage 800 V
- Rated fault withstand current 8000 V
- Nominal current In 160A
- 8 modules
- 4 poles
- Built-in fixed box type
- Total power dissipation 30 W
- Power dissipation per pole 7.5 W
- Rated power at 400V in AC1 105 kW
- Interlockable cover yes
- Minimum cross-section with rigid cable 70mm²
- Screw connection type
- Lug with cable 95 mm²
- Degree of protection of the housing IP20
- Operating temperature -20...+70 °C
- DIN rail mounting
There are no reviews
Data sheet
- Voltage: 380/415VAC
- Modules: 8
- Poles: 4P
- Circuit Protections: Disconnectors
- Operating voltage: AC
