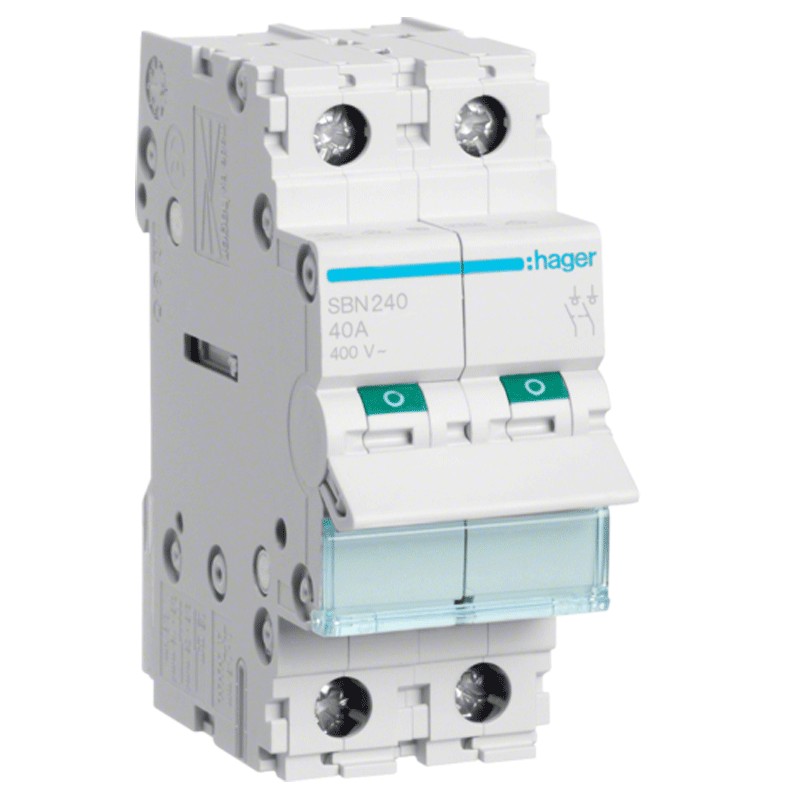

Hager 2P 40A 2 modules SBN240 switch disconnector

Hager
Hager
HAG SBN240 3250615510174

Hager switch-disconnector with the following features:

  • Nominal operating voltage AC 400 Vac
  • Rated frequency 50/60 Hz
  • Rated insulation voltage 440 V
  • Type of input voltage 1 AC
  • Rated fault holding current 6000 V
  • Rated current In 40A
  • Disconnector without neutral
  • 2 poles
  • 2 modules
  • Enclosure protection degree IP20
  • DIN rail mounting
Do you have questions about this product or did you not find what you were looking for? Ask us!
Hager 2P 40A 2 modules SBN240 switch disconnector
€29.67
€29.67

€29.67
Tax included
Calculate shipping cost
Items Available: 30
Further availability of the manufacturer
€29.67

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Thedisconnector, otherwise called voltage isolator, has the same features of a switch, but on a larger scale: it is, in fact, responsible for closing the flow of energy to the power plants. This serves mainly to ensure the safety of the plant and primarily of the people who work inside since one of its peculiarities is to separate the flow of energy from the working environments. Another peculiarity of this instrument is the ability to detect defects in the electrical flow and isolate them. When the defect is corrected, the disconnector will ensure that the current flows normally again.

Features:

  • Hager Series
  • Nominal operating voltage AC 400 Vac
  • Rated frequency 50/60 Hz
  • Rated insulation voltage 440 V
  • Input voltage type 1 AC
  • Rated fault withstand current 6000 V
  • Rated current In 40A
  • Disconnector without neutral
  • 2 poles
  • 2 modules
  • Degree of protection of the enclosure IP20
  • Number of operations (mechanical life) 200000
  • Depth 68 mm
  • Height 83 mm
  • Width 17.5 mm
  • Tightening torque 2.8 Nm
  • Total power loss 2.2 W
  • Power loss per pole 1.1 W
  • Number of operations (mechanical life) 60000
  • Position of aligned terminals
  • Screw connection
  • Operating temperature -20...50 °C
  • Pollution degree 2
  • Altitude 2000m
  • Storage/transport temperature -40...80 °C
  • DIN rail mounting

Il prodotto rispecchia esattamente quanto cercavo.

Come richiesto - funzionante - arrivato prima del previsto - tutto ok!

Prodotto qualità prezzo ottimo con una gamma di prodotti vasta.

Come da descrizione............................

Read all reviews

Data sheet

Voltage:
400VAC
Modules:
2
Poles:
2P
Amps:
40A
Circuit Protections:
Disconnectors
Operating voltage:
AC
