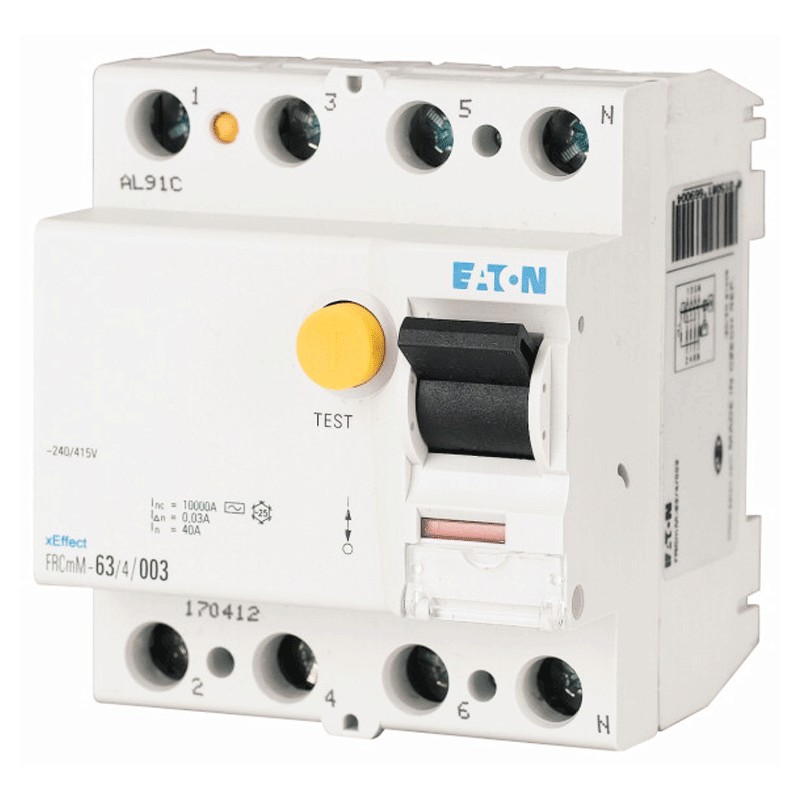

Eaton residual current device 40A 4P 30mA 4 modules AC 170411
EAO 170411
4015081669639
Eaton residual current device with the following features:
- DIN connection (universal for any switchboard on the market)
- 4 poles
- 4 modules
- 40 amperes
- 30mA differential current
- Rated voltage 415 Vac
- AC differential type
€97.67
Items Available: 6
: 2
The residual current device serves to protect people and not installations. The moment a person touches it, it creates a circuit with the ground. The current instead of staying in the home circuit, uses the human body to go to ground.
The residual current device is a device in your electrical system. It is able to open the circuit, i.e. to interrupt the supply of energy, when the current is accidentally lost.
A residual current device offers protection in case of current leakage but not in case of overvoltage. For this type of problem, a circuit breaker is required instead.
The AC residual current device operates only with alternating current. Almost all civil installations fall into this type.
Characteristics:
- Eaton series
- Rated voltage 415 Vac
- Rated insulation voltage Ui 440 V
- Current In 40A
- Differential current 30mA
- Frequency 50 Hz
- AC differential type
- 4 poles
- 4 modules
- Degree of protection IP20
- Recessed depth 70.5 mm
- DIN rail mounting type
There are no reviews
Data sheet
- Voltage: 415VAC
- Modules: 4
- Poles: 4P
- RCD Type: AC
- Differential current : 0.03A
- Amps: 40A
- Circuit Protections: Residual current devices
