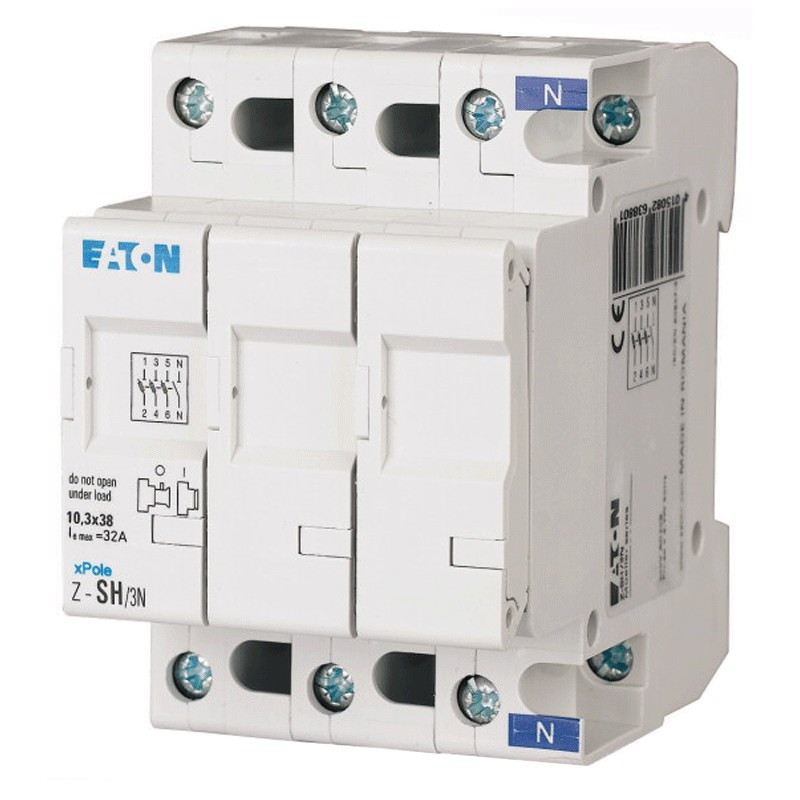

Eaton Fuse Holder Disconnect Switch 3P+N 32A 10.3X38 263880
EAO 263880
9007912284406
Eaton fuse disconnector, with the following features:
- Suitable for fuses (ø 10.3 x 38 mm) size C1-C3
- Max rated operating voltage Ue for AC 400 Vac
- Rated permanent current Iu 32A
- Rated operational power for AC-23, 400V - 0 kW
- Rated conditional short-circuit current Iq 10 kA
- Short-time current capability Icw 0 kA
- 3 poles + N
- 3 modules
€15.75
Items Available: 61
: 1
Frequently bought together
Features:
- Eaton series
- Suitable for fuses (ø 10.3 x 38 mm) size C1-C3
- Max rated operating voltage Ue for AC 400 Vac
- Rated permanent current Iu 32A
- Rated operational power for AC-23, 400V - 0 kW
- Rated conditional short-circuit current Iq 10 kA
- Short-time current capability Icw 0 kA
- 3 poles + N
- 3 modules
- Connection type main circuit screw connection
- Position of actuating element front
- Degree of protection front side IP20
There are no reviews
Data sheet
- Type: Fuse holder
- Size: 10.3X38
- Voltage: 400VAC
- Modules: 3
- Poles: 3P+N
- Amps: 32A
