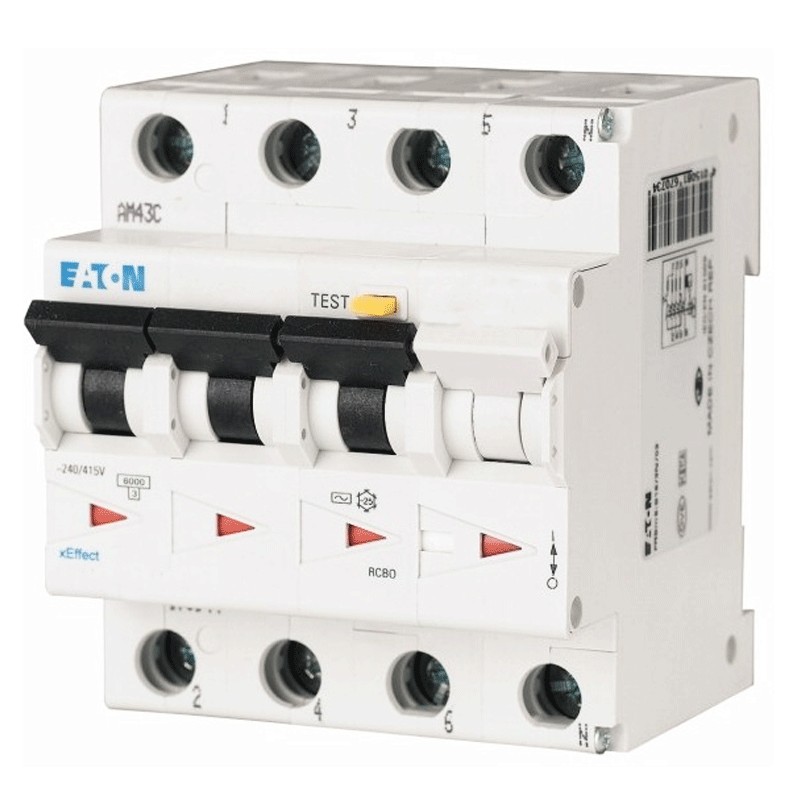

Eaton 20A 3P+N Residual Current operated Circuit Breaker curve C 30Ma 4500ka 171000

Eaton
Eaton
EAO 171000 4015081671212

Eaton Residual Current operated Circuit Breaker, combined protection against short circuits, overloads and current leakage. Ideal for domestic and industrial installations, with the following characteristics:

  • Rated current: 20 amps

  • Number of poles: 3P+N

  • Operating voltage: 240V AC

  • Interrupting capacity: 4.5 kA

  • Differential current: 30 mA

  • Tripping curve: C

  • Differential type: A

  • Number of modules: 4

  • Degree of protection: IP20

Do you have questions about this product or did you not find what you were looking for? Ask us!
Eaton 20A 3P+N Residual Current operated Circuit Breaker curve C 30Ma 4500ka 171000
€207.33
€207.33

€207.33
Tax included
Calculate shipping cost
Items Available: 6
Further availability of the manufacturer
€207.33

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Comprehensive protection for your electrical system

The Eaton RCBO, integrates three basic protections:

  • Magnetic protection against short circuits, preventing fire and damage to the system
  • Thermal protection against overloads, preventing interruptions due to excessive loads
  • Differential protection (30mA) against current leakage, ensuring the safety of people

This combination makes it an essential device for electrical safety in homes, offices and small businesses.

Eaton RCBO: curve C and type A protection

C curve: ideal protection for mixed loads

Thanks to the C-curve tripping curve, the device is suitable for circuits with mixed loads, such as outlets and lighting, reducing the risks of unwanted interruptions.

Operation of the type A RCBO

The A-type residual current device provides excellent protection against alternating sine and pulsating unidirectional leakage currents. This means that it can detect even leakage currents with continuous components, ensuring a higher level of safety than AC-type differential switches.

Eaton RCBO: robustness, reliability and compliance

Robust and compact design

Designed for quick and easy DIN-rail installation, the device is 4 modules wide, taking up little space in the electrical panel. Constructed with halogen- and silicone-free materials, it provides enhanced environmental safety and durability.

Certified reliability and regulatory compliance

Made according to CEI EN 61008-1 standards, it ensures safe and timely tripping of sine-sine alternating differential currents. It has a mechanical life of 10,000 switching cycles, ensuring reliable performance over time.

Features of the Eaton RCBO

Technical Data

Feature Value
Rated current 20A
Number of poles 3P+N
Voltage 240V AC
Differential current 30 mA
Breaking capacity 4.5 kA
Tripping curve C
Type of differential A
Number of modules 4


Installation and Protection

Feature Value
Degree of protection IP20


Dimensions

Feature Value
Height 75.5 mm
Width 70 mm
Depth 80 mm

There are no reviews

Data sheet

Modules:
4
Poles:
3P+E
Curve:
C
Breaking capacity:
4.5KA
RCD Type:
A
Differential current :
0.03A
Amps:
20A
Circuit Protections:
RCBO
