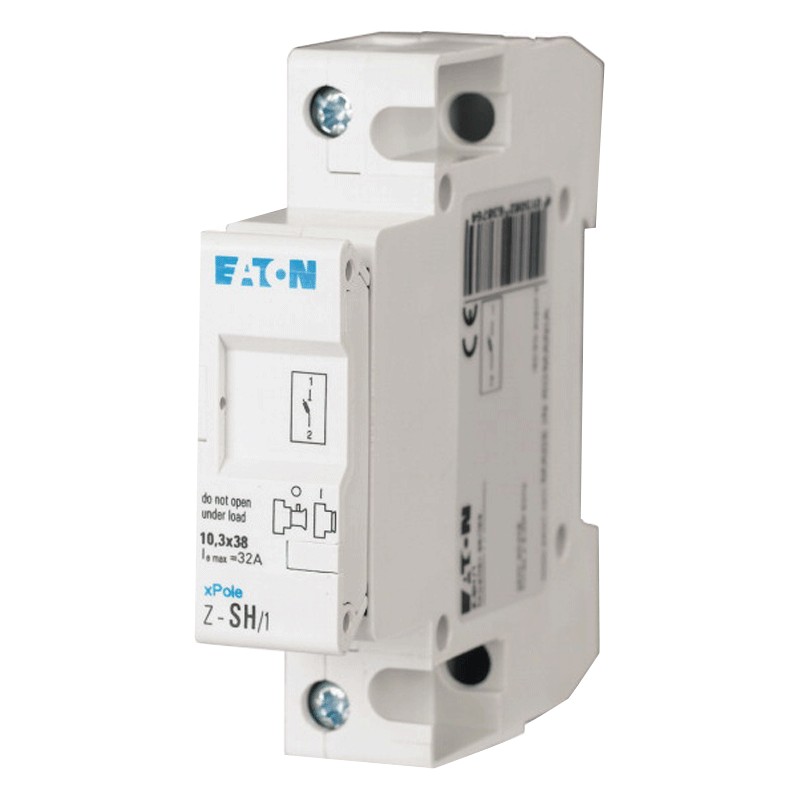

Eaton 1P 32A 10.3X38 fuse disconnect switch 263876
EAO 263876
9007912285427
Eaton fuse disconnector, with the following features:
- Suitable for fuses (ø 10.3 x 38 mm) size C1-C3
- Maximum rated operating voltage Ue for AC 230 Vac
- Rated permanent current Iu 32A
- Rated operational power for AC-23, 400V - 0 kW
- Rated conditional short circuit current Iq 10 kA
- Short time current withstand Icw 0 kA
- 1 pole
- 1 module
€4.07
Items Available: 68
: 4
Frequently bought together
Features:
- Eaton series
- Suitable for fuses (ø 10,3 x 38 mm) size C1-C3
- Max rated operating voltage Ue for AC 230 Vac
- Rated permanent current Iu 32A
- Rated operational power for AC-23, 400V - 0 kW
- Rated conditional short circuit current Iq 10 kA
- Short time current withstand Icw 0 kA
- 1 pole
- 1 module
- Connection type main circuit screw connection
- Position of actuating element front
- Degree of protection front side IP20
There are no reviews
Data sheet
- Type: Fuse holder
- Size: 10.3X38
- Voltage: 400VAC
- Modules: 1
- Poles: 2P
- Amps: 32A
