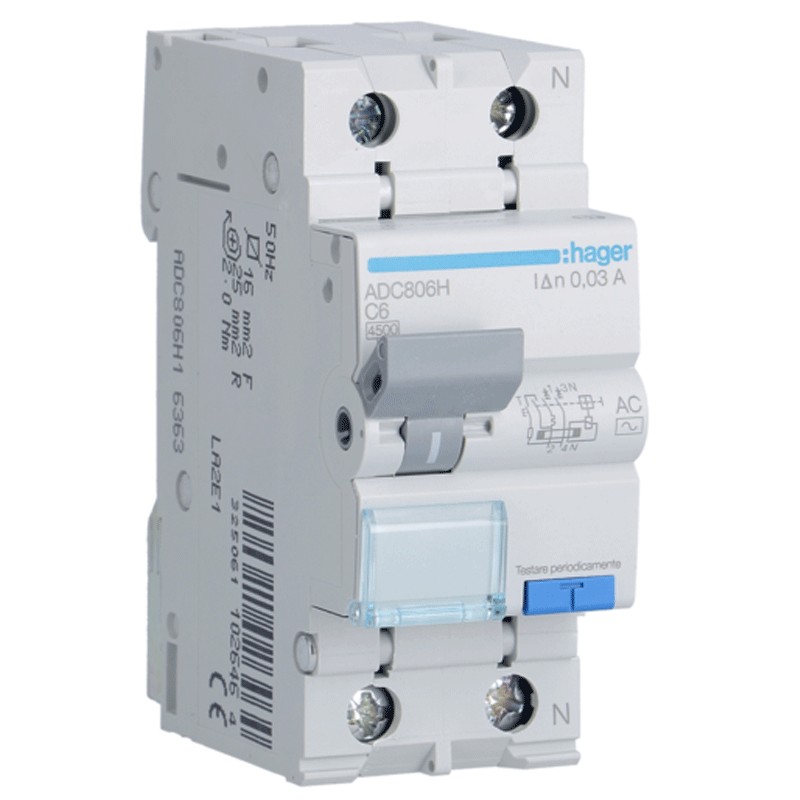

Hager Residual Current Operated Circuit Breaker 1P+N 6A 4.5kA 30mA Curve C Type AC 2M ADC806H

Hager
Hager
HAG ADC806H 3250611026464

Hager Residual Current Operated Circuit Breaker, combines magnetic, thermal and differential protection in one compact device. Ideal for the safety of electrical systems, it offers high reliability against overloads, short circuits and current leakage, with the following features:

  • Rated current: 6 amps

  • Number of poles: 1P+N

  • Operating voltage: 240V

  • Breaking capacity: 4.5 kA

  • Differential current: 30 mA

  • Tripping curve: C

  • Differential type: AC

  • Number of modules: 2

  • Degree of protection: IP20

Do you have questions about this product or did you not find what you were looking for? Ask us!
Hager Residual Current Operated Circuit Breaker 1P+N 6A 4.5kA 30mA Curve C Type AC 2M ADC806H
€30.28
€30.28

€30.28
Tax included
Calculate shipping cost
Items Available: 76
Further availability of the manufacturer
€30.28

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Comprehensive protection for your system

The Eaton circuit breaker combines three essential functions in one device:

  • Magnetic protection: intervenes quickly in the event of a short circuit, preventing damage to cables and reducing the risk of fire
  • Thermal protection: protects against electrical power overloads, ensuring safe operation even with multiple appliances connected at the same time
  • Differential (life-saving) protection: with 30mA sensitivity, it effectively protects people from current leakage, preventing dangerous electric shocks

Hager RCBO: C curve, safety and easy installation

The Eaton Differential Circuit Breaker, offers a complete and safe solution for domestic and commercial electrical systems. With its combined magnetic, thermal and differential protection, it provides high safety standards, ease of installation and long-term reliability.

C-Curve and Differential Protection Type AC

Curve C provides optimal protection in circuits with mixed loads, such as household outlets and lighting systems. It is perfect for loads with medium inrush currents (5-10 times rated current), preventing unwanted trips during normal operation.

This circuit breaker is AC type, which means it detects and interrupts current in case of sinusoidal alternating leakage. It complies with IEC EN 61008-1, providing effective protection for people and electrical equipment.

Easy installation and reliability over time

Compact size (2 modules): ideal for electrical panels with limited space. Quick DIN rail mounting: easy installation and maintenance. IP20 degree of protection: ideal for indoor environments, offers safety against accidental contact.

Hager RCBO Technical Specifications

Feature Value
Rated current 6A
Rated operating voltage 240 Vac
Rated frequency 50 Hz
Interrupting capacity Icn 4.5kA
Tripping curve C
Differential trip characteristic AC
Rated differential current 30 mA
Number of poles 1P+N
Number of Modules 2
Tightening torque 2.1 Nm
Operating temperature -25/+40 degrees
Degree of protection IP20
Connection type Screw terminal
Height 83 mm
Width 35 mm
Depth 68 mm

Parfait pour une 1ère commande. Je recommande

Read all reviews

Data sheet

Modules:
2
Poles:
1P+N
Curve:
C
Breaking capacity:
4.5KA
RCD Type:
AC
Differential current :
0.03A
Amps:
6A
Circuit Protections:
RCBO
