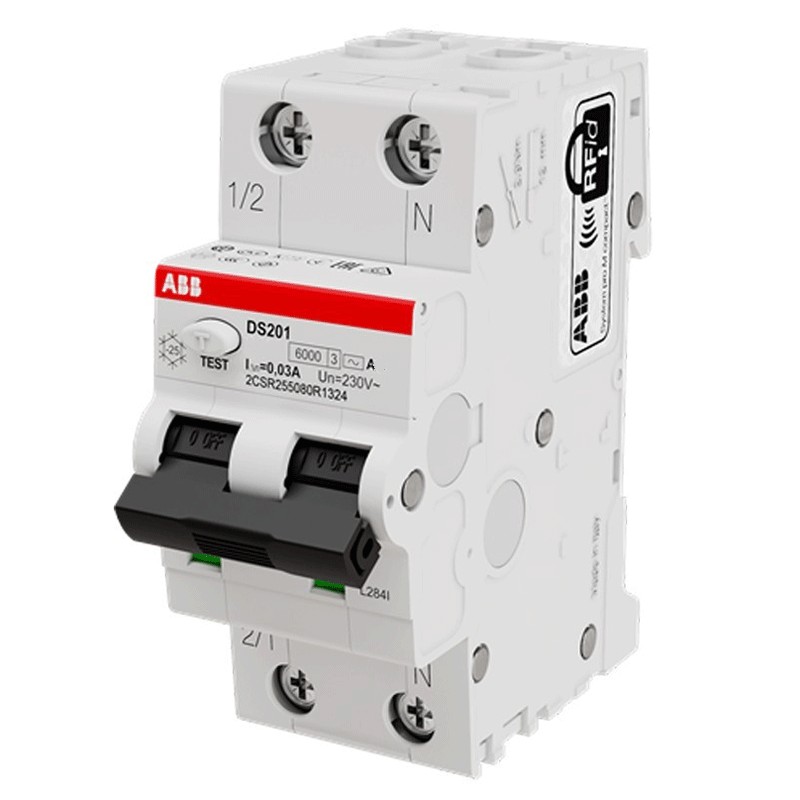

Abb 16A 1P+N 30MA Residual current operated Circuit Breaker A 4.5K 2M DS201LC16A30

Abb
Abb
ABB DS201LC16A30 8012542636915

Abb Residual current operated Circuit Breaker DS201 is the ideal solution for the protection of residential electrical systems, combining the functions of a circuit breaker and a differential. It offers safety against overloads, short circuits and current leakage, with the following features:

  • Rated current: 16 amps

  • Number of poles: 1P+N

  • Operating voltage: 230 Vac

  • Breaking capacity: 4.5 kA

  • Differential current: 30 mA

  • Tripping curve: C

  • Differential type: A

  • Number of modules: 2

  • Degree of protection: IP20

Do you have questions about this product or did you not find what you were looking for? Ask us!
Abb 16A 1P+N 30MA Residual current operated Circuit Breaker A 4.5K 2M DS201LC16A30
€87.99
€87.99

€87.99
Tax included
Calculate shipping cost
Items Available: 5
Further availability of the manufacturer
€87.99

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Further Abb RCBO combinations:

Abb DS201 Residual current operated Circuit Breaker Complete Protection and Maximum Reliability

The Abb RCBO is the ideal choice for residential installations, offering complete protection and reliability against overloads, short circuits and current leakage. Compact, efficient and easy to install, it ensures maximum safety for your home.

The Abb RCBO combines three essential functions for electrical safety:

  • Magnetic protection against short circuits, preventing fire and damage to the system
  • Thermal protection against overloads, preventing overheating
  • Differential protection (circuit breaker) for the safety of people in case of current leakage

Curve C and Type A: Safety and Reliability

Curve C ensures tripping between 5 and 10 times the rated current (In), making it suitable for circuits with mixed ohmic-inductive loads such as household systems.

Type A residual current circuit breaker tripping is assured for alternating sine-sine differential currents and unidirectional pulsating differential currents applied suddenly or slowly increasing (IEC 61008-1).

Compact Structure and Simple Installation

With a footprint of only 2 DIN modules, this switch is designed to optimize space in the electrical panel and ensure easy installation.

Technical Specifications Abb RCBO

Feature Value
Rated current 16 A
Rated residual current 30 mA
Rated short-circuit capacity 4.5 kA
Number of poles 1P+N
Number of modules 2
Rated operating voltage 230 V
Curve C
Type of residual current Type A
Electrical resistance 10000 cycles
Mechanical resistance 20000 cycles
Overvoltage category III
Ambient temperature -5/+55 degrees
Degree of protection IP20
Pollution degree 2
Width 35 mm
Height 85 mm
Depth 69 mm


There are no reviews

Data sheet

Modules:
2
Poles:
1P+N
Breaking capacity:
4.5KA
RCD Type:
A
Differential current :
0.03A
Amps:
16A
Circuit Protections:
RCBO
