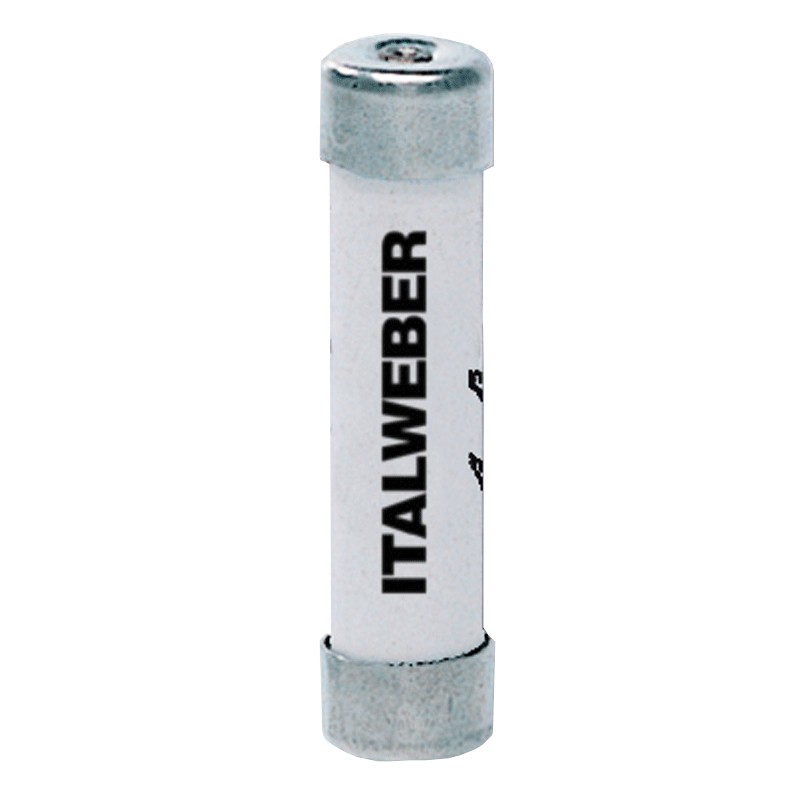

Cylindrical fuse Italweber 9 x 36 mm C1 gG 6A 400V 1110006

Italweber
Italweber
ITW 1110006 8024873046264

Italweber cylindrical fuse, with the following characteristics:

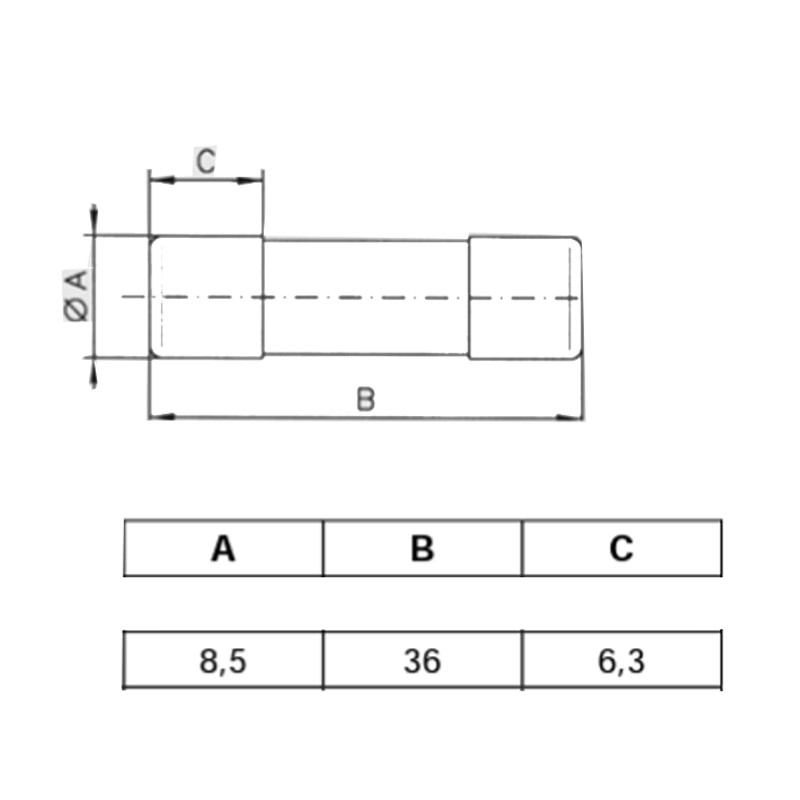

  • Fuse gauge dimensions 9 x 36 mm
  • Fuse series for civil use C1
  • Intervention characteristic gG
  • Nominal current 6A
  • Nominal voltage 400Vac
  • Breaking capacity 20kA
  • Dissipated power 1,40W
Do you have questions about this product or did you not find what you were looking for? Ask us!
Cylindrical fuse Italweber 9 x 36 mm C1 gG 6A 400V 1110006
€1.35
€1.35

The minimum purchase order quantity for the product is 10.

€1.35
Tax included
Calculate shipping cost
Items Available: 41
Further availability of the manufacturer
€1.35

The minimum purchase order quantity for the product is 10.

Buy it within and receive it from Tuesday, 23 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

An electrical fuse (simply called a fuse) is an electrical device that protects a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.

Features:

  • Italweber Series
  • Fuse gauge dimensions 9 x 36 mm
  • Fuse series for civil use C1
  • Tripping characteristic gG
  • Compliant with IEC 60269-1, IEC 60269-3 standards
  • Rated current 6A
  • Rated voltage 400Vac
  • Steatite body
  • Contacts in silvered copper
  • Breaking capacity 20kA
  • Dissipated power 1,40W

There are no reviews

Data sheet

Type:
Cylinder fuses
Size:
9X36
Voltage:
400VAC
Breaking capacity:
20KA
Amps:
6A
Material:
Steatite
