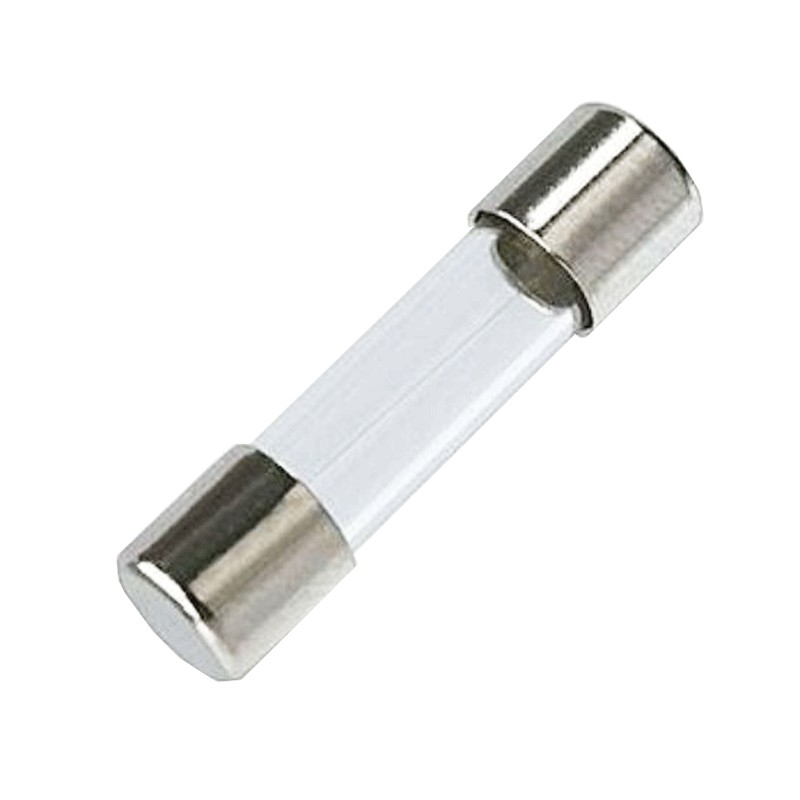

Cylindrical fuse Italweber 5 x 20 mm standard 5A 250V 0104005
ITW 0104005
8024873011309
Italweber cylindrical fuse, with the following characteristics:

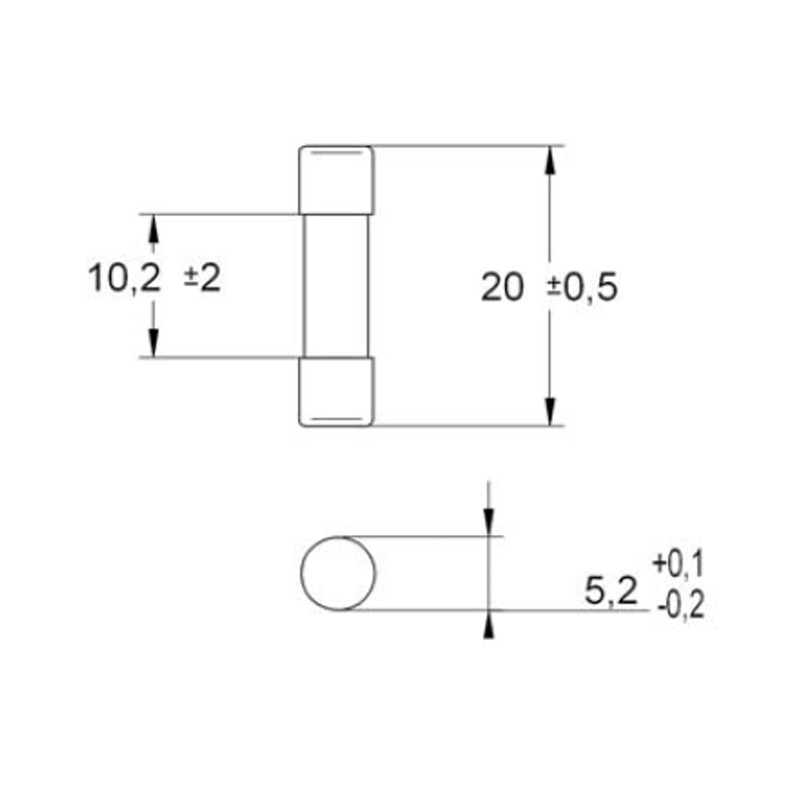

- Fuse gauge dimensions 5 x 20 mm
- Fuse Standard type
- Fast tripping characteristic (F)
- Nominal current 5A
- Voltage 250V
- Interrupting capacity Ik 50
€0.09
Items Available: 1204
: 130
An electrical fuse (simply called a fuse) is an electrical device that protects a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.
Features:
- Italweber series
- Glass body
- Silver plated copper contacts
- Fuse gauge dimensions 5 x 20 mm
- Fuse Standard type
- Fast tripping characteristic (F)
- Compliant with standards CEI 32-6/1, CEI 32-6/2, IEC 60127-1, IEC 60127-2
- Rated current 5A
- Voltage 250V
- Interrupting capacity Ik 50
- Operating temperature -40°C / +90°C
- Maximum altitude 2000 meters above sea level
- Relative humidity < 50% at 40°C
Data sheet
- Type: Cylinder fuses
- Size: 5X20
- Voltage: 250V
- Amps: 5A
- Material: Glass
