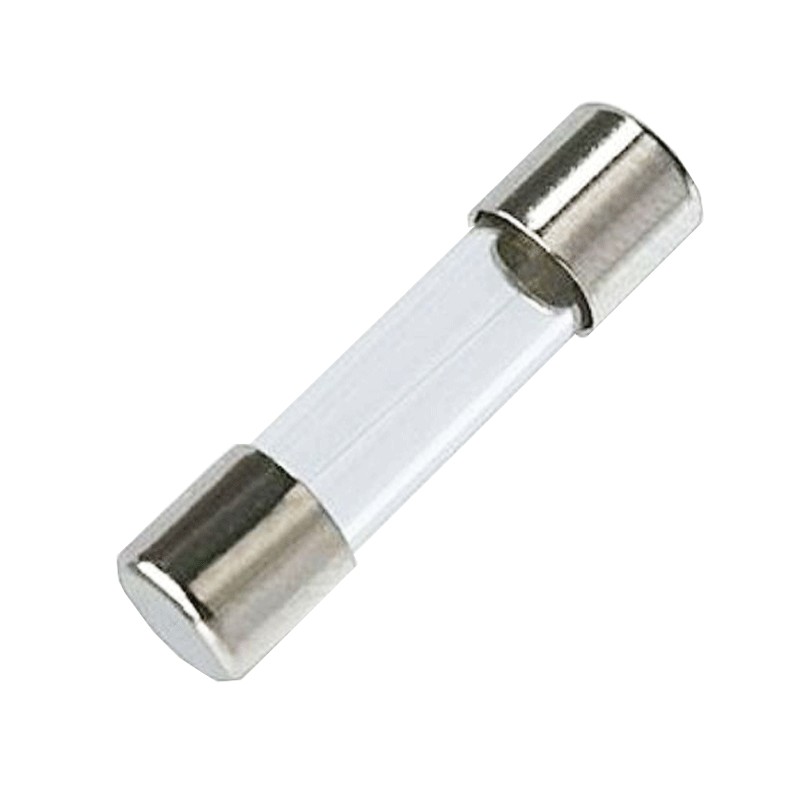

Cylindrical fuse Italweber 5 x 20 mm standard 16A 250V 0105016
ITW 0105016
8024873053545
Italweber cylindrical fuse, with the following characteristics:

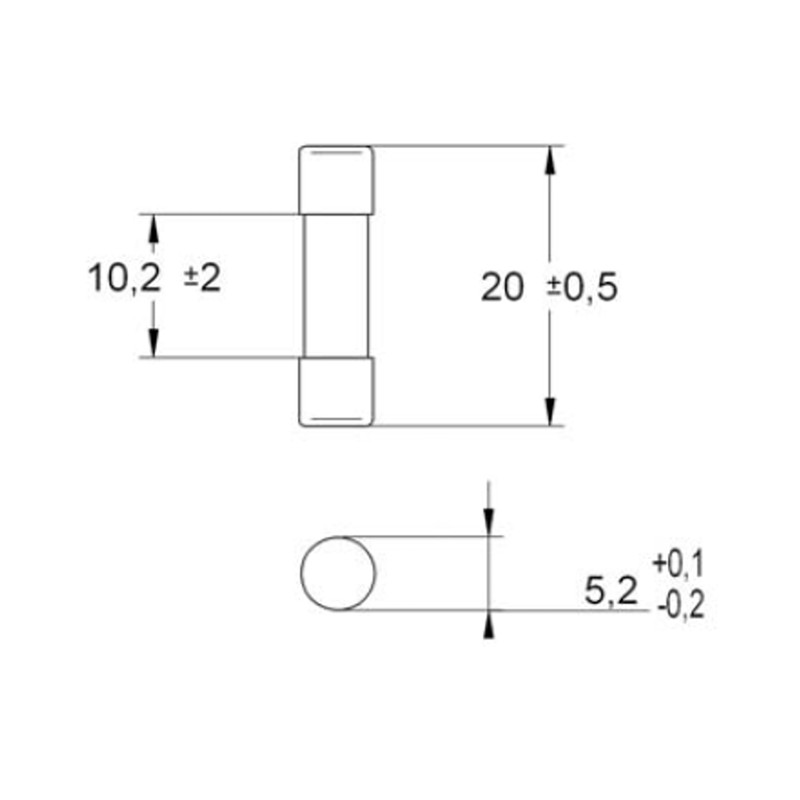

- Fuse gauge dimensions 5 x 20 mm
- Fuse Standard type
- Rapid intervention characteristic (F)
- Nominal current 16A
- Voltage 250V
- Interrupting capacity Ik 160
Cylindrical fuse Italweber 5 x 20 mm standard 16A 250V 0105016
€0.24
€0.24
Tax included
Tax included
Pay in installments with Klarna
Items Available: 840
An electrical fuse (simply called a fuse) is an electrical device that protects a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.
Features:
- Italweber series
- Glass body
- Silver plated copper contacts
- Fuse gauge dimensions 5 x 20 mm
- Fuse Standard type
- Fast tripping characteristic (F)
- Compliant with standards CEI 32-6/1, CEI 32-6/2, IEC 60127-1, IEC 60127-2
- Rated current 16A
- Voltage 250V
- Interrupting capacity Ik 160
- Operating temperature -40°C / +90°C
- Maximum altitude 2000 meters above sea level
- Relative humidity < 50% at 40°C
There are no reviews
Data sheet
- Type:
- Cylinder fuses
- Size:
- 5X20
- Voltage:
- 250V
- Amps:
- 16A
- Material:
- Glass
