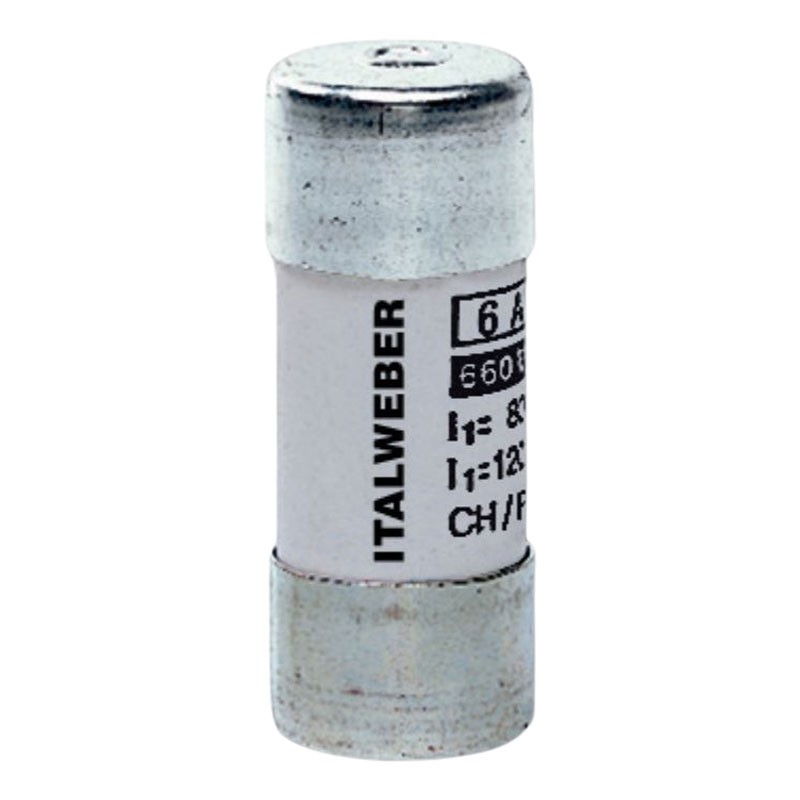

Cylindrical fuse Italweber 14 x 51 mm CH14 aM 40A 500V 1432040
ITW 1432040
8024873002147
Italweber cylindrical fuse, with the following characteristics:
- Fuse gauge dimensions 14 x 51 mm
- Fuse series CH14
- Intervention characteristic aM
- Rated current 40A
- Rated voltage 500 Vac
- Breaking capacity 120kA
![](https://www.elettronew.com/75289-large_default/cylindrical-fuse-italweber-14-x-51-mm-ch14-am-40a-500v-1432040.jpg)
Cylindrical fuse Italweber 14 x 51 mm CH14 aM 40A 500V 1432040
€1.93
€1.93
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 40
An electrical fuse (simply called a fuse) is an electrical device that protects a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.
Features:
- Italweber Series
- Fuse gauge dimensions 14 x 51 mm
- Fuse series CH14
- Intervention characteristic aM
- Compliant with standards CEI 32-1, CEI 32-4, IEC 60269-1, IEC 60269-2
- Rated current 40A
- Rated voltage 500 Vac
- Steatite body
- Contacts in silvered copper
- Breaking capacity 120kA
Data sheet
- Type:
- Cylinder fuses
- Size:
- 14X51
- Voltage:
- 500VAC
- Breaking capacity:
- 120KA
- Amps:
- 40A
- Material:
- Steatite
