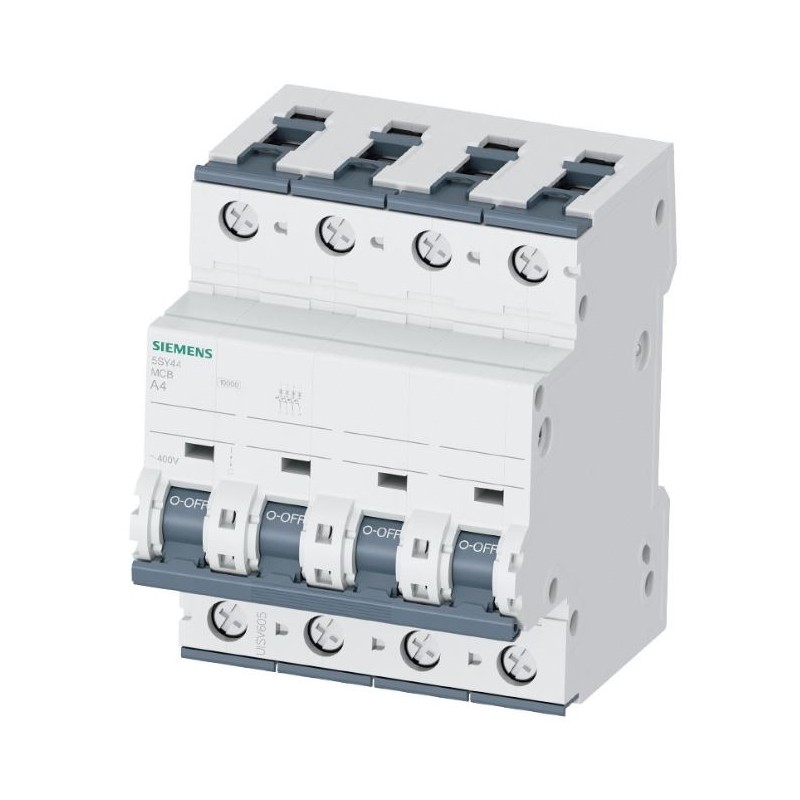

Siemens 4P 6A 10kA Type C circuit breaker 4 modules 5SY44067
SIE 5SY44067
4001869182193
Siemens circuit breaker with the following characteristics:
- Supply voltage for single-phase operation with AC 440V
- Supply voltage with AC rated value 400V, with DC rated value 60V
- Operating voltage with DC nominal value max 72V
- Operating current: 6 amperes
- Breaking capacity 10kA
- 4 modules DIN connection (universal connection for any switchboard on the market)
- 4 poles
- Tripping curve C
Siemens 4P 6A 10kA Type C circuit breaker 4 modules 5SY44067
€74.17
€74.17
Tax included
Tax included
Pay in installments with Klarna
Items Available: 13
Curve C can tolerate short-term overcurrents of up to five to ten times the rated current and is widely used in domestic installations.
A circuit breaker is a safety device that can automatically (i.e., without external intervention) interrupt the flow of electric current in an electrical circuit in the event of an overcurrent.
Features:
- Siemens series
- Mechanical service life (switching cycles) / typ. 10.000
- Overvoltage category III
- Pollution degree 3
- Energy limitation class 3
- Degree of protection IP20, with conductors connected
- Power dissipation at current rating / with AC / in hot operating state / per pole 1.6W
- Short-circuit breaking capacity (Icn): with AC according to UL 1077 and CSA C22.2 No.235 5 kA
- Tightening torque with screw terminals: min 2.5 Nm - max 3.5 Nm
- Mains cable position: any
- Ambient temperature during operation: min -40 °C - max 70 °C
- Ambient temperature during storage: min -40 °C - max 75 °C
- Fastening type: Quick fastening system
- Any mounting position
- Number of test cycles per environmental test according to IEC 60068- 2-30: 6
- Net weight 611 grams

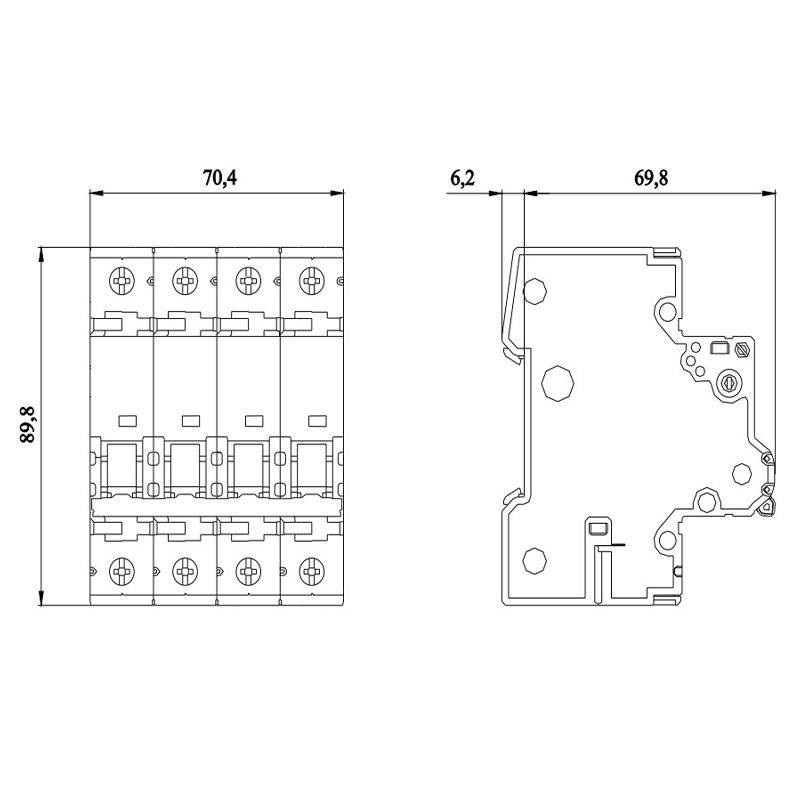

Dimensions:
- Height 90 mm
- Width 72 mm
- Depth 76 mm
- Recessed depth 70 mm
There are no reviews
Data sheet
- Voltage:
- 400VAC
- Modules:
- 4
- Poles:
- 4P
- Curve:
- C
- Power:
- 10KA
- Amps:
- 6A
- Circuit Protections:
- Circuit breakers
