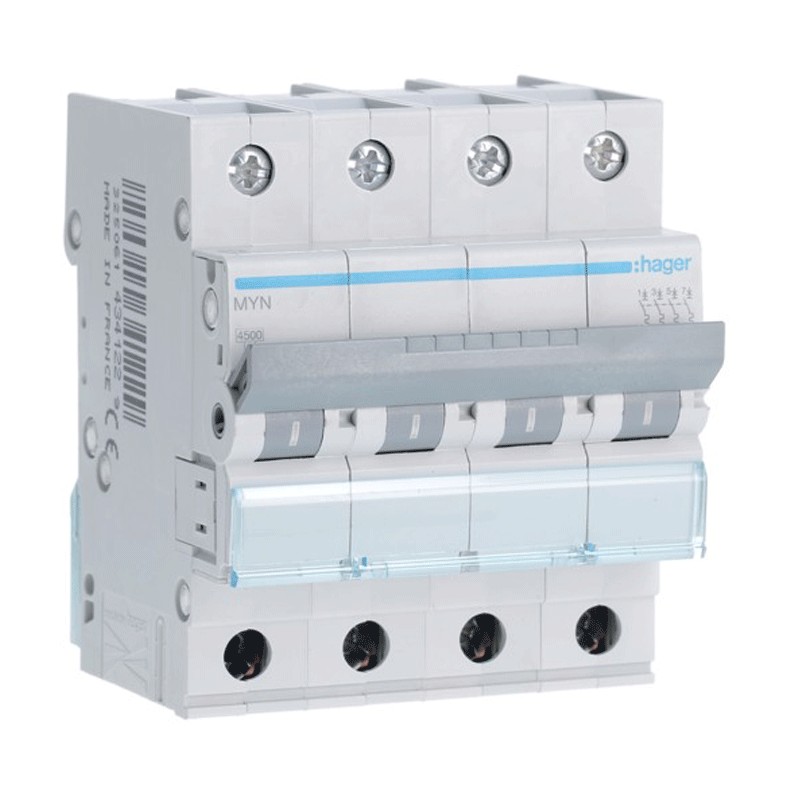

Circuit breaker Hager 4P 6A 4,5 KA C 4 modules MYN406

Hager
Hager
HAG MYN406 3250614341212

Circuit breaker Hager 4P 6A 4,5 KA C 4 modules MYN406

Do you have questions about this product or did you not find what you were looking for? Ask us!
Circuit breaker Hager 4P 6A 4,5 KA C 4 modules MYN406
€62.35
€62.35

€62.35
Tax included
Calculate shipping cost
Items Available: 3
Further availability of the manufacturer
€62.35

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Technical characteristics rated operational Voltage ac: 230/400 V rated Frequency: 50/60 Hz rated Current in A: 6 Poles: 4 P Power rated breaking capacity Icn: 4.5 kA breaking capacity Icu: 6 kA Curve: C Number of modules 17.5 mm: 4 Power loss per pole: 1.3 W short-circuit Capacity of - NF EN 60898: 4,5 kA rated Voltage, insulation: 500v Number of operations (mechanical endurance): 20000 electrical Life and number of cycles: 4000 protection Index IP: IP20 operating Temperature: -25 to 60 °C storage Temperature: -25 to 80 °C Torque: 2.8 Nm Execution tropicalized for all climates

There are no reviews

Data sheet

Voltage:
400VAC
Modules:
4
Poles:
4P
Curve:
C
Breaking capacity:
4.5KA
Amps:
6A
Circuit Protections:
Circuit breakers
