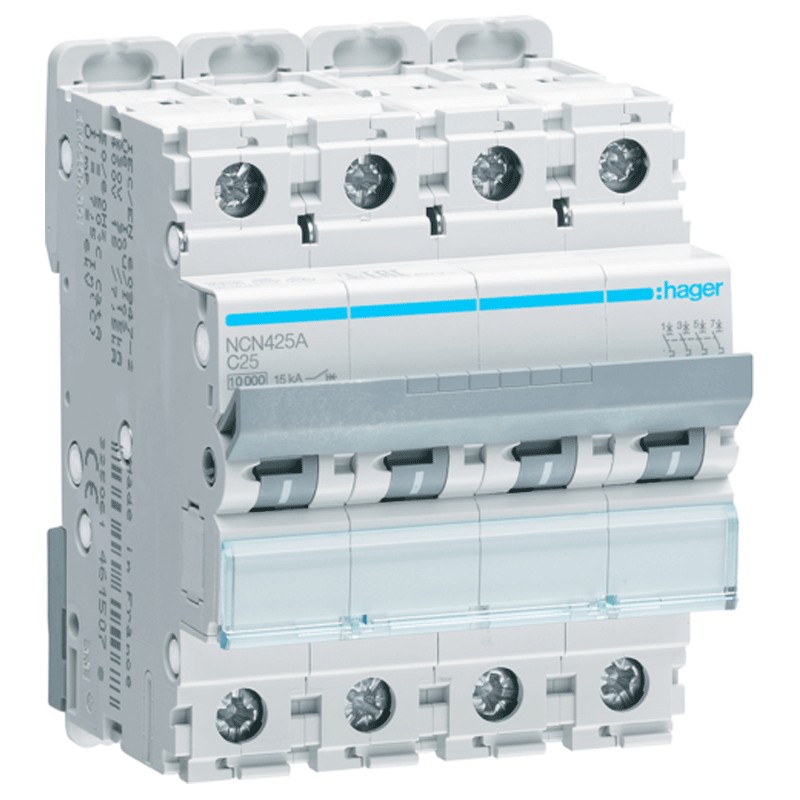

Circuit breaker Hager 4P 25A 10KA C 4 modules NCN425A
HAG NCN425A
3250614615993
Circuit breaker Hager 4P 25A 10KA C 4 modules NCN425A
€107.12
Items Available: 10
: 1
Further Hager circuit breaker combinations:
Frequently bought together
Technical characteristics Rated current in: 25 A Poles: 4 P Breaking capacity Icu: 15 kA Curve: C Number of modules 17.5 mm: 4 Power dissipated per pole: 2.1 W Rated voltage insulation: 500 V The number of operations (mechanical endurance): 20000 Electrical life and number of cycles: 4000 Protection index IP: IP20 Operating temperature: -25 to 60 °C Storage temperature: -25 to 80 °C Tightening torque: 2,8 Nm
There are no reviews
Data sheet
- Voltage: 400VAC
- Modules: 4
- Poles: 4P
- Curve: C
- Breaking capacity: 10KA
- Amps: 25A
- Circuit Protections: Circuit breakers
