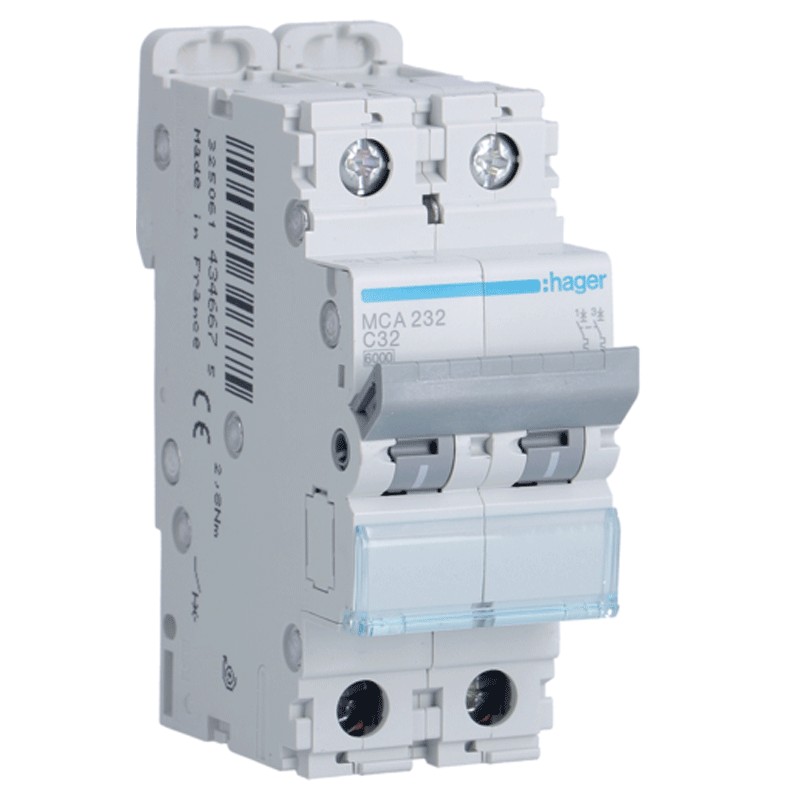

Circuit breaker Hager 2P 32A 6 KA C 2 modules MCA232

Hager
Hager
HAG MCA232 3250614346675

Circuit breaker Hager 2P 32A 6 KA C 2 modules MCA232

Do you have questions about this product or did you not find what you were looking for? Ask us!
Circuit breaker Hager 2P 32A 6 KA C 2 modules MCA232
€46.79
€46.79

€46.79
Tax included
Calculate shipping cost
Items Available: 52
Further availability of the manufacturer
€46.79

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Technical characteristics Rated operational voltage ac: 230/400 V Rated frequency: 50/60 Hz Rated current in: 32 A Number Of Poles: 2 P Power rated breaking capacity Icn: 6 kA Breaking capacity Icu: 10 kA Curve: C Number of modules 17.5 mm: 2 Power dissipated per pole: 2.1 W Capacity short-circuit - NF EN 60898: 6 kA Rated voltage insulation: 500 V The number of operations (mechanical endurance): 20000 Electrical life and number of cycles: 4000 Protection index IP: IP20 Operating temperature: -25 to 60 °C Storage temperature: -25 to 80 °C Tightening torque: 2,8 Nm Execution tropicalized for all climates

There are no reviews

Data sheet

Voltage:
400VAC
Modules:
2
Poles:
2P
Curve:
C
Breaking capacity:
6KA
Amps:
32A
Circuit Protections:
Circuit breakers
