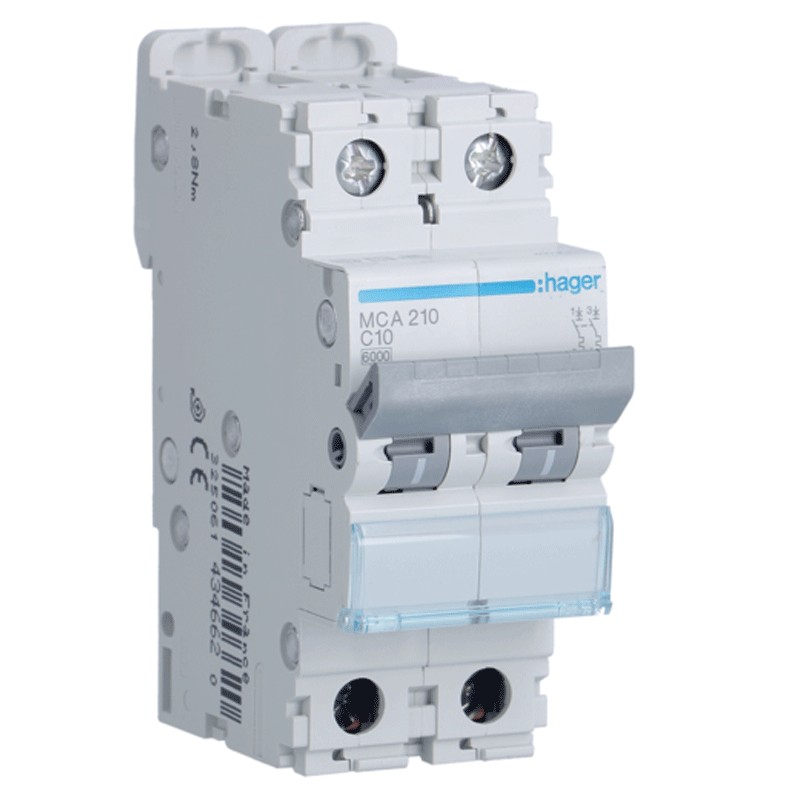

Circuit breaker Hager 2P 10A 6 KA C 2 modules MCA210
HAG MCA210
3250614346620
Circuit breaker Hager 2P 10A 6 KA C 2 modules MCA210
Circuit breaker Hager 2P 10A 6 KA C 2 modules MCA210
€46.53
€46.53
Tax included
Tax included
Pay in installments with Klarna
Items Available: 101
Technical characteristics Rated operational voltage ac: 230/400 V Rated frequency: 50/60 Hz Rated current in: 10 A Number Of Poles: 2 P Power rated breaking capacity Icn: 6 kA Breaking capacity Icu: 10 kA Curve: C Number of modules 17.5 mm: 2 Power dissipated per pole: 2.1 W Capacity short-circuit - NF EN 60898: 6 kA Rated voltage insulation: 500 V The number of operations (mechanical endurance): 20000 Electrical life and number of cycles: 4000 Protection index IP: IP20 Operating temperature: -25 to 60 °C Storage temperature: -25 to 80 °C Tightening torque: 2,8 Nm Execution tropicalized for all climates
Data sheet
- Voltage:
- 400VAC
- Modules:
- 2
- Poles:
- 2P
- Curve:
- C
- Power:
- 6KA
- Amps:
- 10A
- Circuit Protections:
- Circuit breakers
