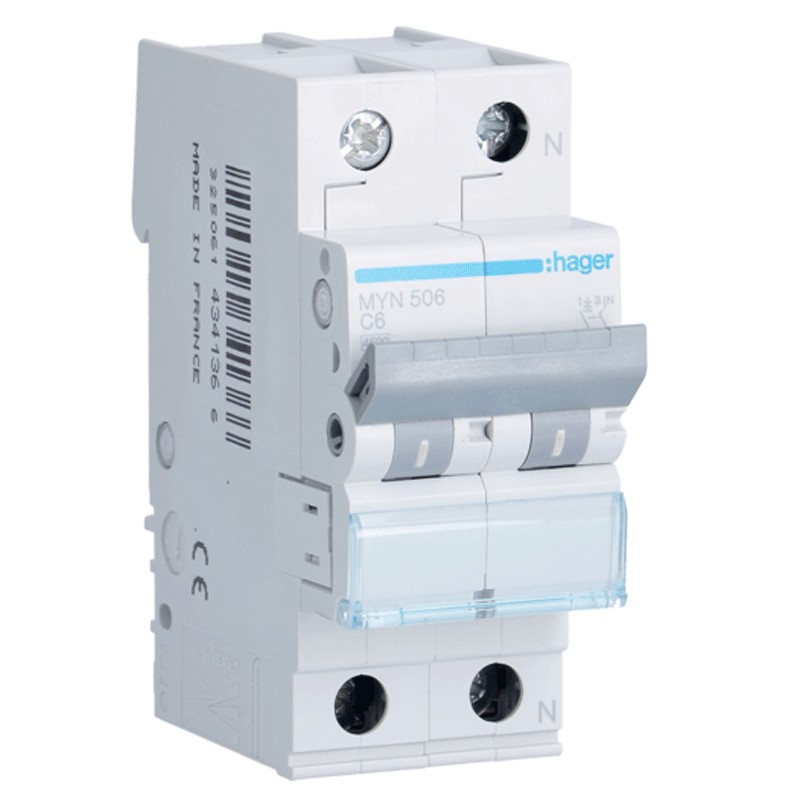

Circuit breaker Hager 1P+N 6A 4,5 KA C 2 modules MYN506

Hager
Hager
HAG MYN506 3250614341366

Circuit breaker Hager 1P+N 6A 4,5 KA C 2 modules MYN506

Do you have questions about this product or did you not find what you were looking for? Ask us!
Circuit breaker Hager 1P+N 6A 4,5 KA C 2 modules MYN506
€10.95
€10.95

€10.95
Tax included
Calculate shipping cost
Items Available: 24
Further availability of the manufacturer
€10.95

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Technical characteristics rated operational Voltage ac: 230/400 V rated Frequency: 50/60 Hz rated Current in A: 6 Poles: 2 P Power rated breaking capacity Icn: 4.5 kA Curve: C Number of modules 17.5 mm: 2 Power loss per pole: 1,22 W short-circuit Capacity of - NF EN 60898: 4,5 kA rated Voltage, insulation: 500v Number of operations (mechanical endurance): 20000 electrical Life and number of cycles: 4000 Location of the neutral: the right protection Index IP: IP20 operating Temperature: -25 to 60 °C storage Temperature: -25 to 80 °C Torque: 2.8 Nm Execution tropicalized for all climates

There are no reviews

Data sheet

Voltage:
230VAC
Modules:
2
Poles:
1P+N
Curve:
C
Breaking capacity:
4.5KA
Amps:
6A
Circuit Protections:
Circuit breakers
