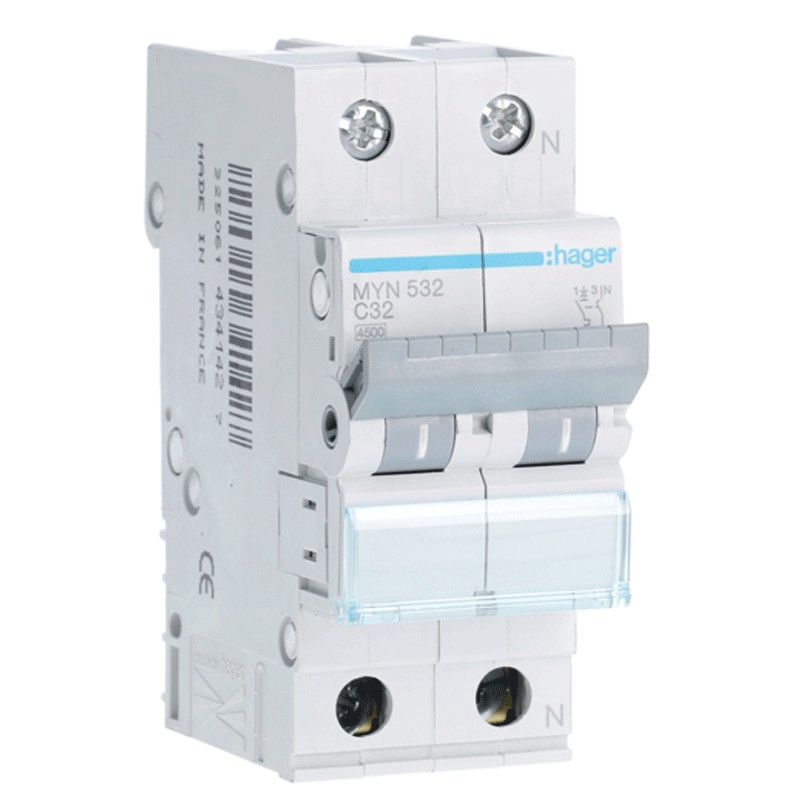

Circuit breaker Hager 1P+N 32A 4.5 KA C 2 modules MYN532
HAG MYN532
3250614341427
Circuit breaker Hager 1P+N 32A 4.5 KA C 2 modules MYN532
Circuit breaker Hager 1P+N 32A 4.5 KA C 2 modules MYN532
€12.30
€12.30
Tax included
Tax included
Pay in installments with Klarna
Items Available: 48
Technical characteristics rated operational Voltage ac: 230/400 V rated Frequency: 50/60 Hz rated Current in: 32 A Poles: 2 P Power rated breaking capacity Icn: 4.5 kA Curve: C Number of modules 17.5 mm: 2 Power loss per pole: 1,22 W short-circuit Capacity of - NF EN 60898: 4,5 kA rated Voltage, insulation: 500v Number of operations (mechanical endurance): 20000 electrical Life and number of cycles: 4000 Location of the neutral: the right protection Index IP: IP20 operating Temperature: -25 to 60 °C storage Temperature: -25 to 80 °C Torque: 2.8 Nm Execution tropicalized for all climates
Data sheet
- Voltage:
- 230VAC
- Modules:
- 2
- Poles:
- 1P+N
- Curve:
- C
- Power:
- 4.5KA
- Amps:
- 32A
- Circuit Protections:
- Circuit breakers
