Eaton Circuit breaker 16A 1P+N 4.5 KA 2 modules 243230
EAO 243230
4015082432300

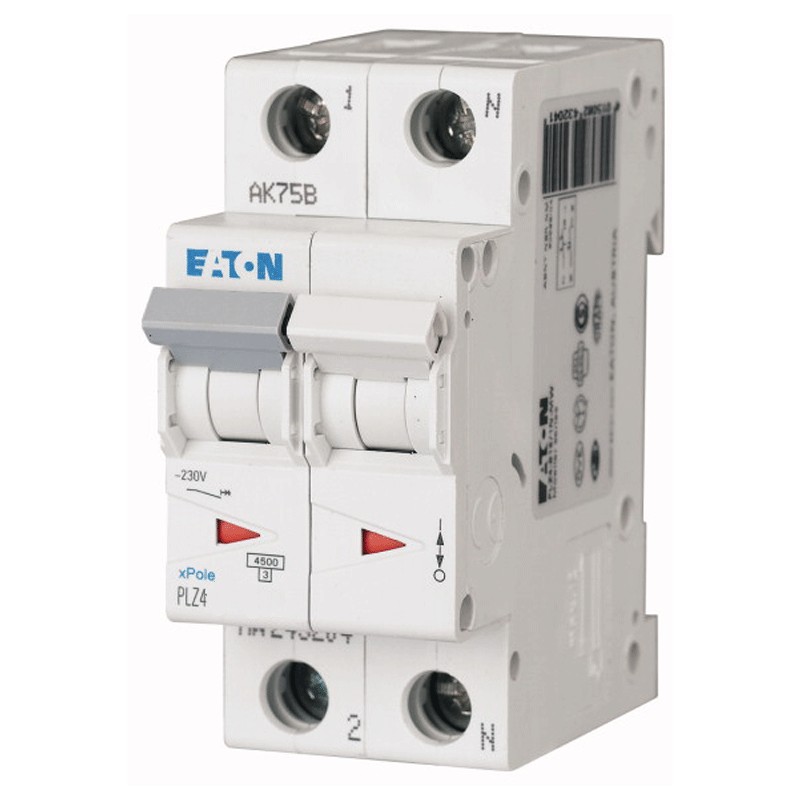

Eaton circuit breaker, 2 modules, DIN connection (universal for any switchboard on the market), poles 1P+N, 16 amperes, breaking capacity 4.5 kA, voltage 230/440 Vac, curve C.
€6.95
Items Available: 31
: 11
Further Eaton circuit breaker combinations:
C curve, trip threshold 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. It is widely used in domestic installations, residential and functional buildings.
A circuit breaker is a safety device capable of automatically (i.e. without external intervention) interrupting the flow of electrical current in an electrical circuit in the event of an overcurrent.
Features:
- Eaton series
- Voltage 230/440 Vac
- Current In 16A
- Interrupting capacity Icn 4.5kA
- Frequency 50 - 60 Hz
- Tripping curve C
- 2 modules
- Poles 1P+N
- Recessed depth 70.5 mm
- Degree of protection IP20
Interruttore robusto e con morseti di buone dimensioni
Come da descrizione ad un buon prezzo
tutto ok
arrivato il pacco in perfette condizioni
servizo clienti preciso ed affidabile
ottimo consigliato
faro sicuramente altri acquisti
Data sheet
- Voltage: 230VAC
- Modules: 2
- Poles: 1P+N
- Breaking capacity: 4.5KA
- Amps: 16A
- Circuit Protections: Circuit breakers
