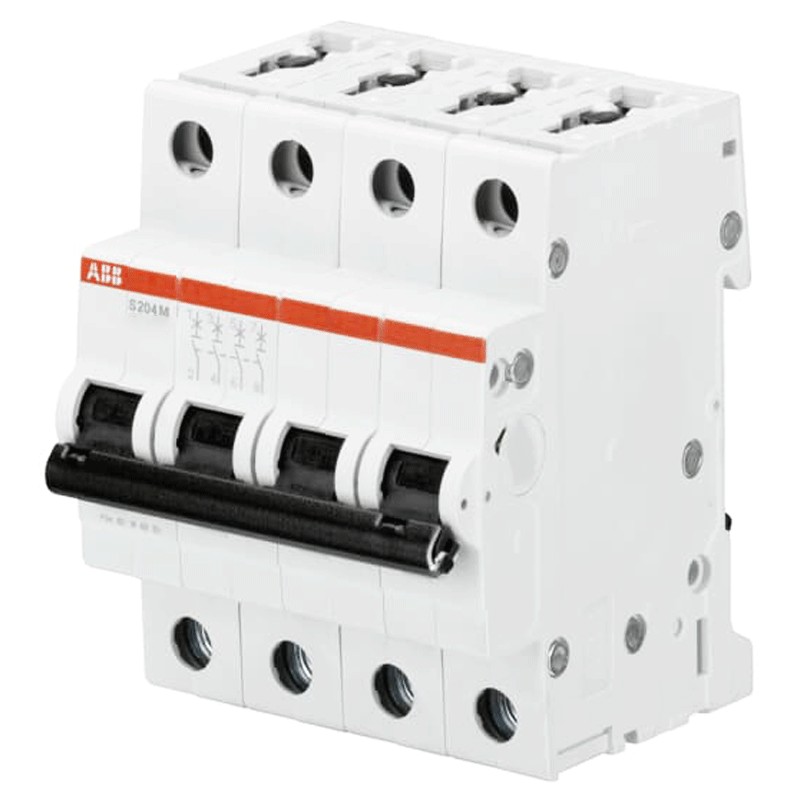

Abb circuit breaker S204M 4P 32A 10kA curve C 4M S550789

Abb
Abb
ABB S550789 4016779550789

Abb S204M-C25 thermal-magnetic circuit breaker, maximum protection for three-phase systems, ideal for industrial and tertiary installations, with the following features:

  • Number of poles: 4P

  • Rated current: 32 A

  • Rated breaking capacity: 10 kA

  • Tripping curve: C

  • Operating voltage: Up to 440V AC / 125V DC

  • Degree of protection: IP20 (IP40 with enclosure)

  • Number of Modules: 4

Do you have questions about this product or did you not find what you were looking for? Ask us!
Abb circuit breaker S204M 4P 32A 10kA curve C 4M S550789
€108.48
€108.48

€108.48
Tax included
Calculate shipping cost
Items Available: 163
Further availability of the manufacturer
€108.48

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Abb circuit breaker reliability and safety for electrical panels

The Abb circuit breaker is designed for the protection of three-phase systems or complex single-phase networks in industrial, commercial or tertiary applications. Curve C is suitable for general loads such as motors, transformers and mixed supplies, tolerating temporary overcurrents up to 5-10 times rated current.

High breaking power for maximum safety

With a rated breaking capacity of 10 kA, this circuit breaker ensures a high circuit breaking capacity in the event of a short circuit, minimizing the risk of damage to the system. Energy-limiting class 3 ensures its effectiveness in containing passing energy during tripping.

Rugged, durable and compatible

Designed for quick mounting on standard DIN rail, the device boasts Class II insulation construction and a mechanical strength of 20,000 cycles. Failsafe bi-directional screw terminal allows safe wiring with cables up to 35 sq. mm.

Abb Magnetothermic Technical Specifications

Technical Specifications

Number of poles 4P
Tripping curve C
Rated current (In) 32 A
Interrupting capacity (Icu) 25 kA @ 230 V AC
15 kA @ 400 V / 440 V AC
Service rating (Ics) 7.5 kA @ 230 V AC
Rated insulation voltage (Ui) 440 V
Impulse voltage (Uimp) 4 kV
Operating Voltage Up to 440 V AC / 125 V DC
Rated frequency 50 / 60 Hz
Power loss 12.8 W (3.2 W per pole)
Overvoltage category III
Degree of protection IP20 (IP40 with enclosure)
Installation DIN rail (EN 60715) - 4 modules
Operating temperature range -25 °C / +55 °C
Supported cable cross-section Flexible: 0.75 - 25 mm²
Rigid: 0.75 - 35 mm²
Terminal tightening torque 2.8 Nm
Enclosure material Insulation class II
Contact position indicator Red/Green (ON/OFF)

There are no reviews

Data sheet

Voltage:
400VAC
Modules:
4
Poles:
4P
Curve:
C
Breaking capacity:
10KA
Amps:
32A
Circuit Protections:
Circuit breakers
