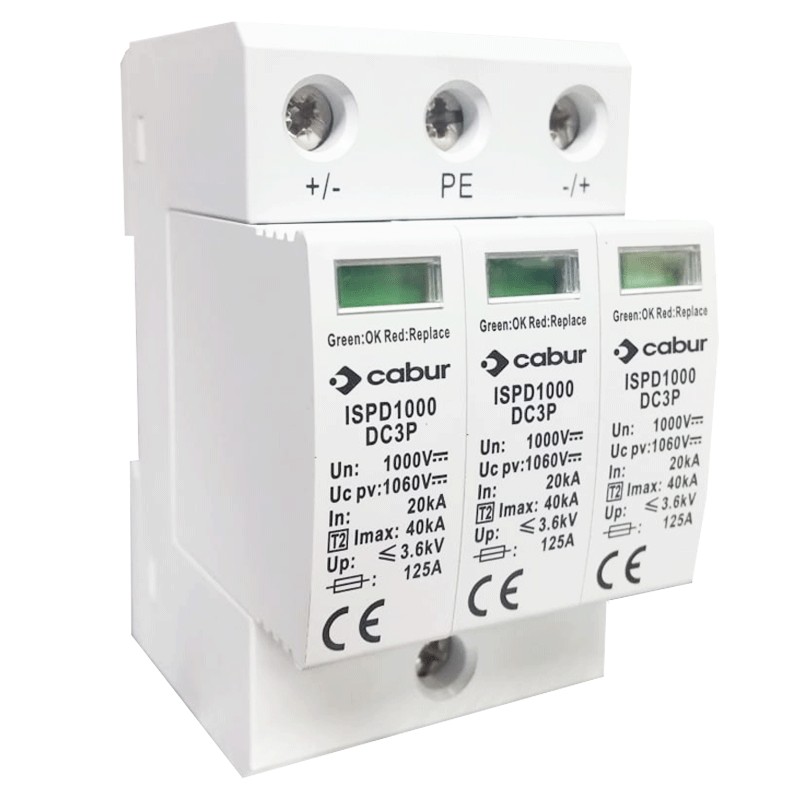

Cabur 1000VDC Surge Arrester ISPD1000DC3P

Cabur
Cabur
CBR ISPD1000DC3P 8017963172097

Cabur overvoltage protection arrester, with the following characteristics:

  • Nominal voltage 1000 V

  • Maximum continuous voltage 1060 V

  • Maximum discharge current (8/20µs) Imax 40 kA

  • Rated impulse discharge current (8/20µs) 20 kA

  • Mounting Guide TH35

  • Category of use II

  • Degree of protection IP20

Do you have questions about this product or did you not find what you were looking for? Ask us!
Cabur 1000VDC Surge Arrester ISPD1000DC3P
€83.54
€83.54

€83.54
Tax included
Calculate shipping cost
Items Available: 21
Further availability of the manufacturer
€83.54

Buy it within and receive it from Monday, 9 February
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

The surge arrester is an instrument that can be mounted inside the electrical panel, therefore upstream of the home system. Its use allows you to put in protection the electrical system on which it is installed.

The surge arrester will protect the entire system from surges, surges and peaks of electricity that may come from the operator of the power line, or from atmospheric phenomena such as lightning. These power anomalies can cause serious damage to the devices connected to the outlets.

A power surge can cause the hardware of a PC to break, or short circuit the boards of smartphones, tablets and home appliances. In the event that the flow of energy suddenly increases dramatically, human life can even be at risk due to electrocution.

To prevent this from happening, it is therefore advisable to fit a surge protector.


Surge arresters are divided into three classes:

In class 1 we find devices to be used in areas where adverse weather phenomena such as thunderstorms and lightning usually insist (for example in the mountains). In this case the arrester is mounted in the electrical panel and can withstand several surges without being damaged. The discharge takes place in 350 microseconds, so that the excess energy does not reach the system.


 In class 2 there are surge arresters that protect the system from surges and spikes that may be caused by maintenance work on the line by the operator.

In class 3, on the other hand, we find those devices that offer even greater protection: in this case, the surge arrester is installed directly at the electrical outlets present in the home.

Features:

  • Cabur series

  • Category of use II

  • Nominal voltage 1000 V

  • Maximum continuous voltage 1060 V

  • Maximum discharge current (8/20µs) Imax 40 kA

  • Rated impulse discharge current (8/20µs) 20 kA

  • Protection level Up kV 3.6

  • Insulation resistance (MΩ) > 10² Insulation type (ns)

  • Trip type (ns) < 25

  • Recommended back-up fuse A 125

  • Equipped with internal protection fuse

  • Max. cable cross section (mm²) 25

  • Mounting TH35 rail

  • Operating temperature (°C) -40...+85

  • Degree of protection IP20

  • Housing material PP0

  • Flammability class UL94-V0

  • Fault indicator (Green LED OK - Red LED FAULT)

devo ancora montarlo pa penso di non avere problemi mi sembra un prodotto di buona qualita'

Read all reviews

Data sheet

Voltage:
1000V
Modules:
3
Poles:
3P
Maximum current:
40KA
Version:
2
Model:
DC
Circuit Protections:
Surge protectors
