Bticino thermomagnetic differential switch 6A 4.5K GC8813AC6
BTI GC8813AC6
8005543566152

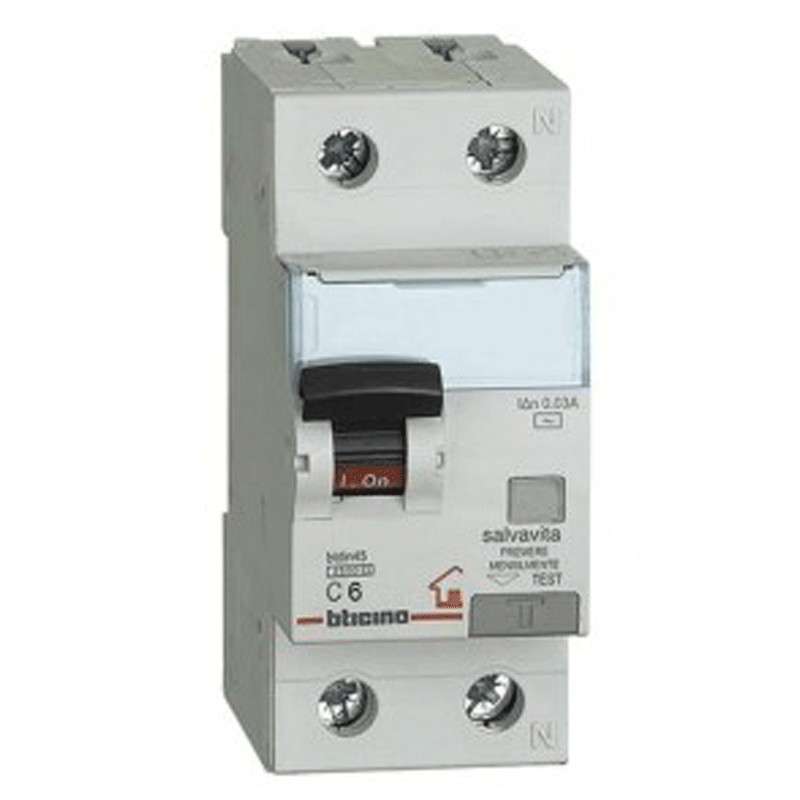

Bticino differential thermomagnetic circuit breaker, 2 modules, DIN connection (universal for any switchboard on the market), 1P+N, 6 amperes, breaking capacity 4.5kA, voltage 230 Vac, differential current Idn 0.03A, AC type, trip curve C.
€21.19
Items Available: 267
: 78
The thermal-magnetic circuit breaker is located next to the circuit breaker and combines magnetic and thermal protection and, if necessary, interrupts the electrical current.
The thermal-magnetic circuit breaker is, therefore, a system that combines the functions of the circuit breaker with magnetic and thermal characteristics.
The thermal-magnetic differential switch in the electrical system integrates three different protections:
- the magnetic one for short circuits that can put an entire building at risk of fire;
- the thermal one for overloads in the supply of electrical energy (e.g. more than one household appliance in operation);
- the differential which protects the subject from a current leakage.
The AC residual current circuit breaker type tripping is assured for sinusoidal alternating currents applied suddenly or slowly increasing (CEI EN 61008-1).
Features:
- Bticino series
- Voltage 230 Vac
- Current In 6A
- Interrupting capacity Icn 4,5kA
- Intervention curve C
- Differential current Idn 0,03A
- Type of AC differential
- 1 module
- 1P+N

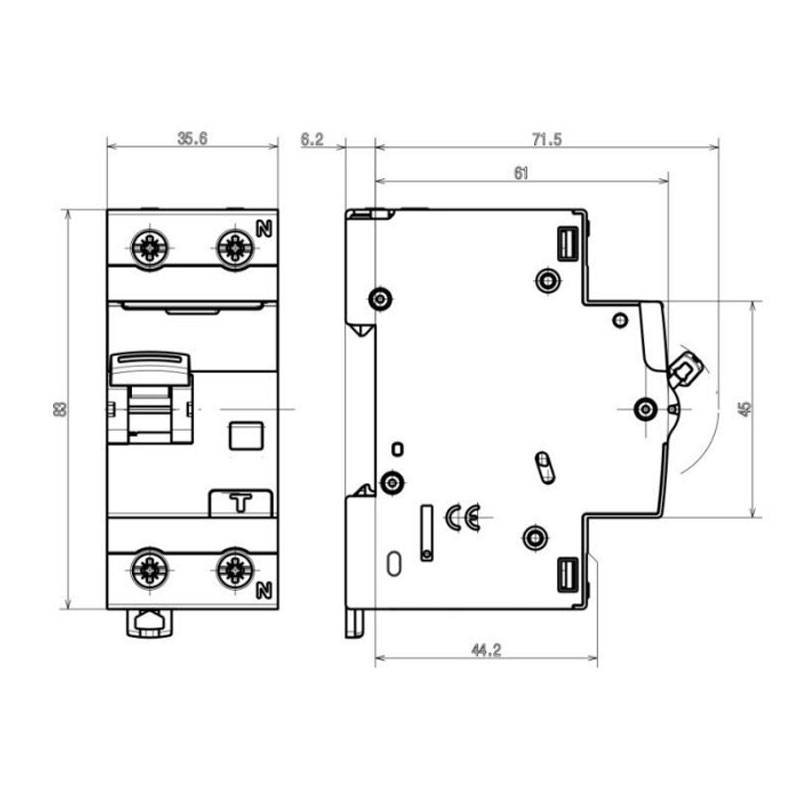

- Height 83 mm
- Width 35.6 mm
- Depth 76 mm
- Maximum cable section 25/35mmq
- Degree of protection IP20
Ottimo prodotto, BTicino azienda storica, una garanzia
I prodotti bticino sono sempre eccellenti
Data sheet
- Modules: 2
- Poles: 1P+N
- Curve: C
- Breaking capacity: 4.5KA
- RCD Type: AC
- Differential current : 0.03A
- Amps: 6A
- Circuit Protections: RCBO
