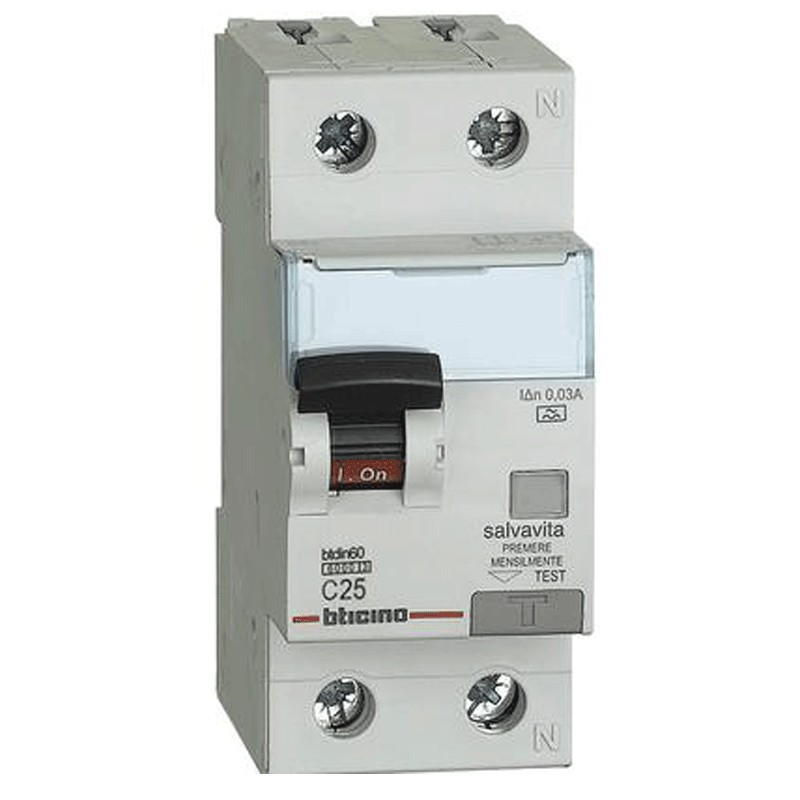

Bticino residual current operated circuit breaker 1P+N 25A 30mA type A 6kA 2 modules GN8813A25
BTI GN8813A25
8005543458853
Bticino BTDIN residual current operated circuit breaker, provides protection against overcurrents and leakage, ensuring safety and efficiency in electrical circuits. Ideal for civil and industrial installations, it offers reliable protection of people and equipment, with the following features:
-
Rated current: 25 amps
-
Number of poles: 1P+N
-
Operating voltage: 230V
-
Breaking capacity: 6 kA
-
Differential current: 30 mA
-
Tripping curve: C
-
Differential type: A
-
Number of modules: 2
-
Degree of protection: IP20
€182.15
Items Available: 3
Bticino Residual current operated circuit breaker Protection and Operation
Protection and safety for electrical systems
The Bticino circuit breaker is designed to offer complete protection in electrical circuits. Its dual magnetothermal and differential function allows it to intervene in both overcurrents and leakage, preventing faults and possible electrical accidents.
Type A: Increased Sensitivity to Differential Currents
Type A circuit breaker detects both alternating sine and pulsating unidirectional currents, intervening immediately in the event of a leakage, either sudden or gradual.
Compact Structure, Easy Installation and Applications
Compact structure and easy installation
The circuit breaker is designed in 2 Modules, making it compatible with most standard electrical panels. With compact dimensions, it offers quick and easy installation. It can be connected with conductors up to 25/35 sq. mm, ensuring versatility and adaptability.
Applications and use
Suitable for residential, commercial and industrial installations, it protects people and equipment from overloads and current leakage. It is ideal for isolating and controlling electrical circuits, reducing the risks of direct and indirect contact with live parts.
Features of the Bticino RCBO
| Feature | Value |
|---|---|
| Rated current | 25A |
| Number of poles | 1P+N |
| Voltage | 230V AC |
| Differential current | 30 mA |
| Breaking capacity | 6 kA |
| Tripping curve | C |
| Type of differential | A |
| Number of modules | 2 |
Installation and Protection
| Feature | Value |
|---|---|
| Degree of protection | IP20 |
| Maximum cable cross section | 25/35 mm² |

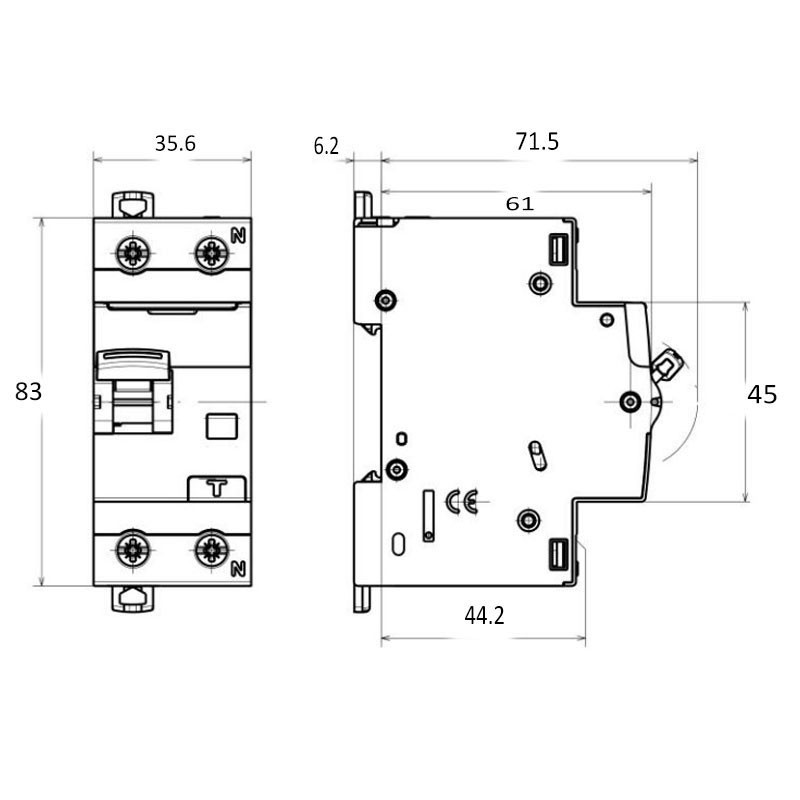

Dimensions
| Feature | Value |
|---|---|
| Height | 83 mm |
| Width | 35.6 mm |
| Depth | 76 mm |
There are no reviews
Data sheet
- Modules: 2
- Poles: 1P+N
- Curve: C
- Breaking capacity: 6KA
- RCD Type: A
- Differential current : 0.03A
- Amps: 25A
- Circuit Protections: RCBO
