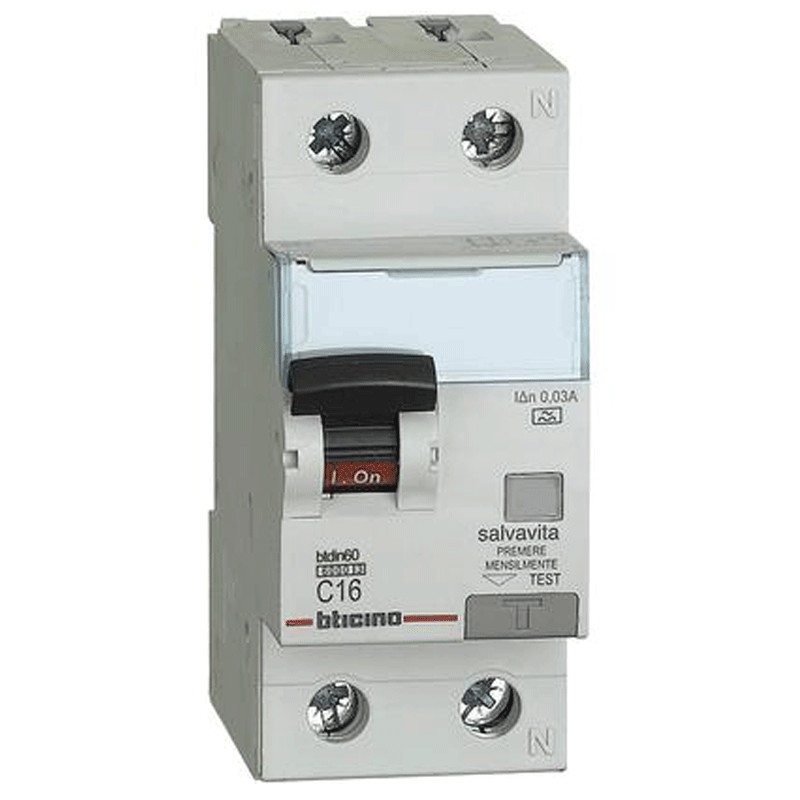

Bticino residual current operated circuit breaker 1P+N 16A 30mA type A 6kA 2 modules GN8813A16

Bticino
Bticino
BTI GN8813A16 8005543458839

Bticino BTDIN residual current operated circuit breaker, provides protection against overcurrents and leakage, ensuring safety and efficiency in electrical circuits. Ideal for civil and industrial installations, it offers reliable protection of people and equipment, with the following features:

  • Rated current: 16 amps

  • Number of poles: 1P+N

  • Operating voltage: 230V

  • Breaking capacity: 6 kA

  • Differential current: 30 mA

  • Tripping curve: C

  • Differential type: A

  • Number of modules: 2

  • Degree of protection: IP20

Do you have questions about this product or did you not find what you were looking for? Ask us!
Bticino residual current operated circuit breaker 1P+N 16A 30mA type A 6kA 2 modules GN8813A16
€177.41
€177.41

€177.41
Tax included
Calculate shipping cost
Items Available: 52
Further availability of the manufacturer
€177.41

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Bticino Residual current operated circuit breaker Protection and Operation

Protection and safety for electrical systems

The Bticino circuit breaker is designed to offer complete protection in electrical circuits. Its dual magnetothermal and differential function allows it to intervene in both overcurrents and leakage, preventing faults and possible electrical accidents.

Type A: Increased Sensitivity to Differential Currents

Type A circuit breaker detects both alternating sine and pulsating unidirectional currents, intervening immediately in the event of a leakage, either sudden or gradual.

Compact Structure, Easy Installation and Applications

Compact structure and easy installation

The circuit breaker is designed in 2 Modules, making it compatible with most standard electrical panels. With compact dimensions, it offers quick and easy installation. It can be connected with conductors up to 25/35 sq. mm, ensuring versatility and adaptability.

Applications and use

Suitable for residential, commercial and industrial installations, it protects people and equipment from overloads and current leakage. It is ideal for isolating and controlling electrical circuits, reducing the risks of direct and indirect contact with live parts.

Features of the Bticino RCBO

Feature Value
Rated current 16A
Number of poles 1P+N
Voltage 230V AC
Differential current 30 mA
Breaking capacity 6 kA
Tripping curve C
Type of differential A
Number of modules 2


Installation and Protection

Feature Value
Degree of protection IP20
Maximum cable cross section 25/35 mm²

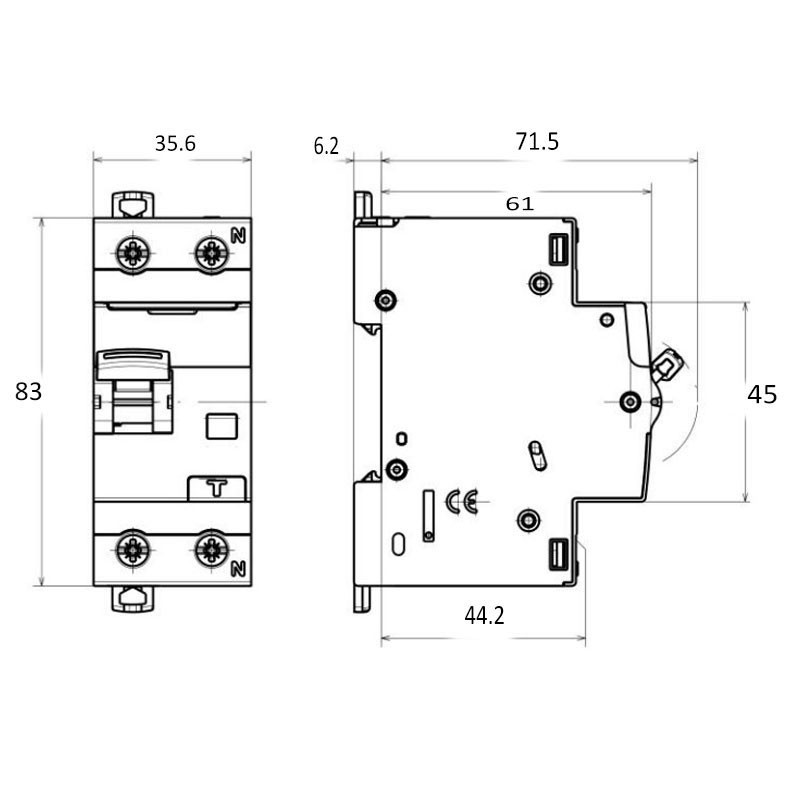

Dimensions

Feature Value
Height 83 mm
Width 35.6 mm
Depth 76 mm

There are no reviews

Data sheet

Modules:
2
Poles:
1P+N
Curve:
C
Breaking capacity:
6KA
RCD Type:
A
Differential current :
0.03A
Amps:
16A
Circuit Protections:
RCBO
