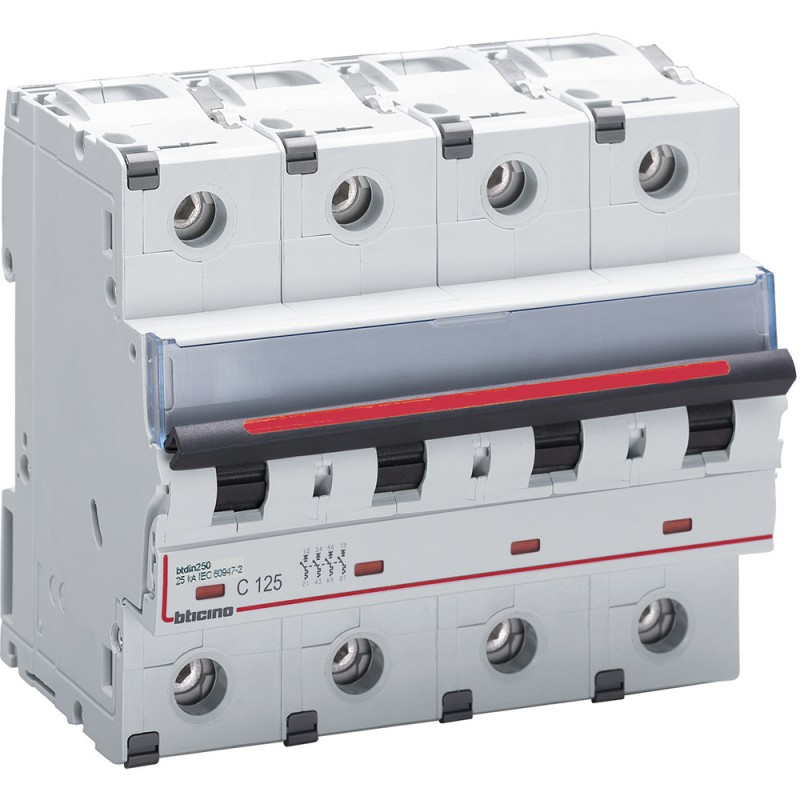

Bticino thermal-magnetic circuit breaker 125A 25KA 4P Curve C FV84C125
BTI FV84C125
8005543408285
Thermal-magnetic circuit breaker Bticino Current In 125A Breaking capacity Icu 25KA 4P Trip curve C, 6 modules.
€478.37
Items Available: 1
Characteristics:
- Reference Standard CEI EN 60947-2
- Voltage 400Vac
- Current In 125A
- Interrupting capacity Icu 25kA
- Intervention curve C
- Modules 6
- Poles 4P
- Degree of protection IP20
- Height 83mm
- Width 106.8mm
- Depth 76mm
- Maximum cable section 50/70mmq
- Series IT Btdin.
There are no reviews
Data sheet
- Voltage: 400VAC
- Modules: 6
- Poles: 4P
- Curve: C
- Breaking capacity: 25KA
- Amps: 125A
- Circuit Protections: Circuit breakers
