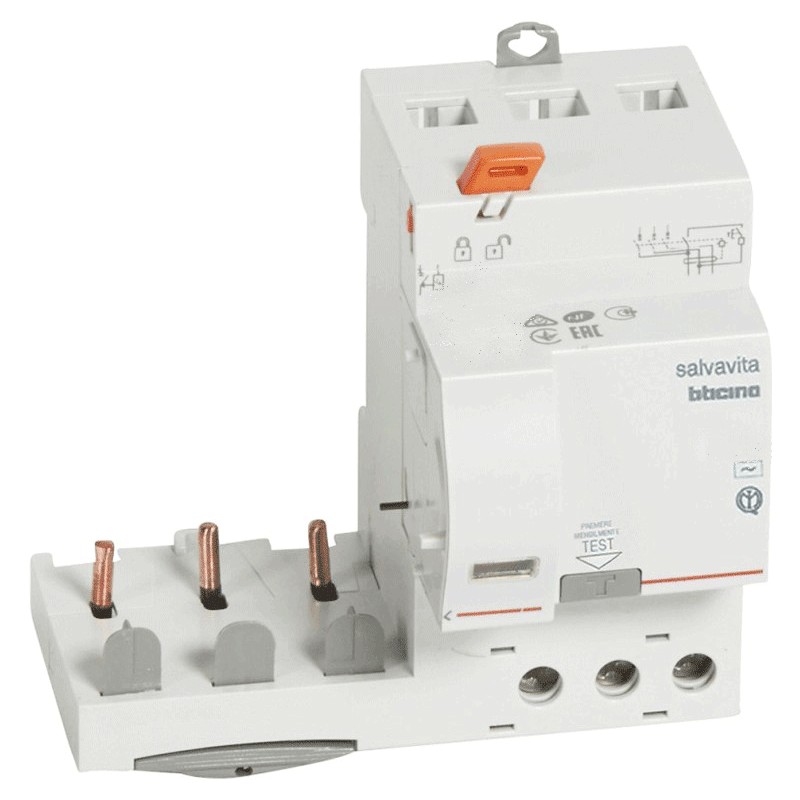

Bticino residual current circuit breaker 4P AS 63A 1000mA 3 modules G46AS63
BTI G46AS63
8005543463260
Bticino differential block (circuit breaker), with the following characteristics:
- 3 modules
- DIN connection (universal for any switchboard on the market)
- 4 poles
- 63 amperes
- Differential current Idn 1000mA
- Voltage 400 Vac
- Type of differential A-S
€268.90
Items Available: 7
The differential blocks are mechanically designed to prevent a wrong coupling between the block and the circuit breaker: the power of the block must always be equal or greater than that of the circuit breaker. The lateral plastic clamp allows a quicker assembly of the block on the circuit breaker and a push button prevents possible interventions.
It is used to protect human health in case of earth fault (electrical leakage) or phase-to-earth electrocution, thus providing protection also against macro electrical shock, both direct and indirect, on exposed persons.
The residual current circuit breakertype A-S: selective or delayed residual current circuit breakers: they operate with intentional delay (like type A).
Characteristics:
- Bticino series
- Voltage 400Vac
- Current In 63A
- Current differential Idn 1000mA
- Differential type A-S
- 3 modules
- 4 poles
- Degree of protection IP20
- Height 83 mm
- Width 35,6 mm
- Depth 76 mm
- Maximum cable section 25/35 mmq
There are no reviews
Data sheet
- Modules: 3
- Poles: 4P
- RCD Type: AS
- Differential current : 1A
- Amps: 63A
- Circuit Protections: Earth Leakage add-on Blocks
