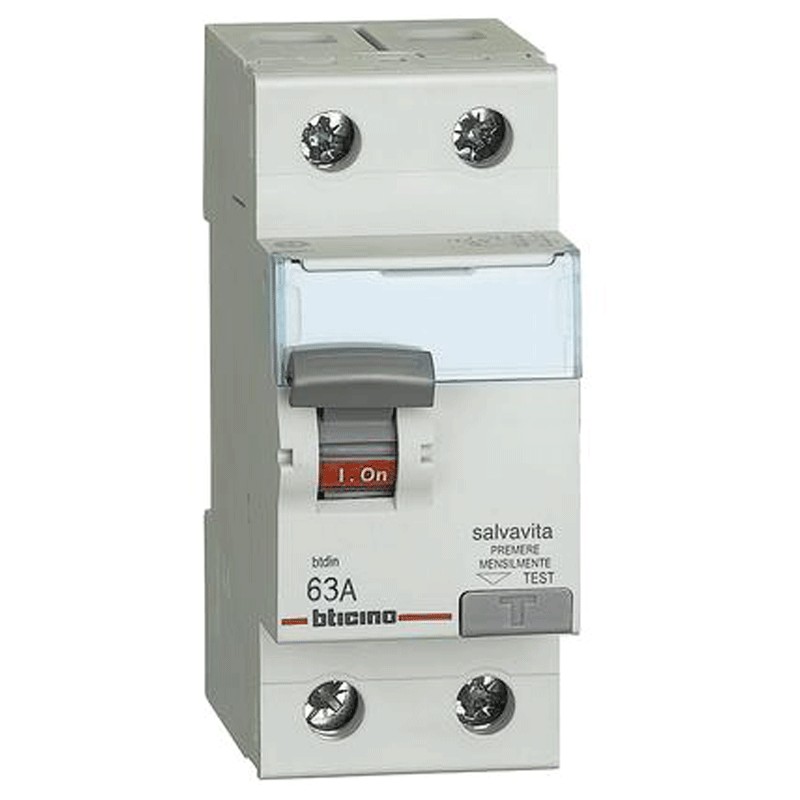

Bticino residual current circuit breaker 0.03A 63A AC G723AC63
BTI G723AC63
8005543459355
Pure differential switch (circuit breaker) Bticino, 2 modules, DIN connection (universal for any switchboard on the market), 2P poles, 63 amperes, differential current Idn 0.03A, voltage 230/400 Vac, AC differential type.
Bticino residual current circuit breaker 0.03A 63A AC G723AC63
€154.02
€154.02
Tax included
Tax included
Pay in installments with Klarna
Items Available: 1
The pure earth leakage circuit breaker is used to protect people and not the equipment. The moment a person goes to touch it, it creates a circuit with the earth. The current instead of remaining in the domestic circuit, uses the human body to go to earth.
The residual current circuit breaker, also called circuit breaker, is a device in your electrical system. It is able to open the circuit, i.e. to interrupt the supply of energy, when the current is accidentally lost.
A pure residual current circuit breaker offers protection in case of current leakage but not in case of overvoltage. For this type of problem, a circuit breaker is required instead.
The AC residualcurrent circuit breaker operates only with alternating current. Almost all civil installations fall into this type.
Characteristics:
- Bticino series
- Voltage 230/400 Vac
- Current In 63A
- Differential current Idn 0,03A
- AC differential type
- 2 modules
- 2P
- Degree of protection IP20
- Height 83 mm
- Width 35.6 mm
- Depth 76 mm
- Maximum cable section 25/35 sq. mm
There are no reviews
Data sheet
- Voltage:
- 230/400VAC
- Modules:
- 2
- Poles:
- 2P
- RCD Type:
- AC
- Differential current :
- 0.03A
- Amps:
- 63A
- Circuit Protections:
- Residual current devices
