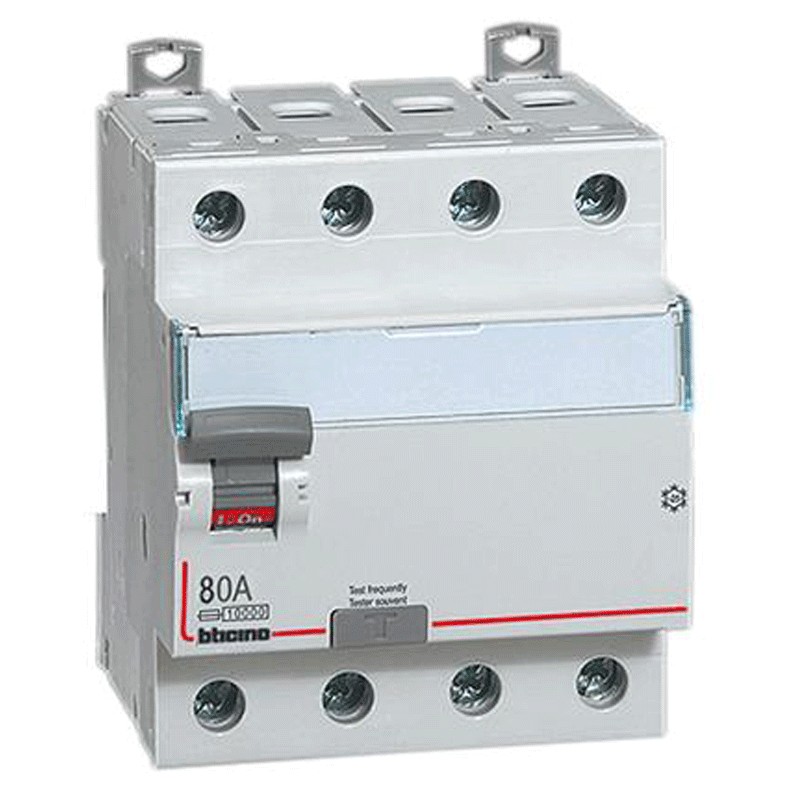

Bticino pure differential switch 4 poles 80A 300mA AC type 4 modules G744AC80
BTI G744AC80
8005543459867
Pure differential switch (life-saving) Bticino, 4 modules, DIN connection (universal for any switchboard on the market), 4P poles, 80 amperes, differential current Idn 0.3A, voltage 400 Vac, AC differential type.
Bticino pure differential switch 4 poles 80A 300mA AC type 4 modules G744AC80
€208.79
€208.79
Tax included
Tax included
Pay in installments with Klarna
Items Available: 2
The pure earth leakage circuit breaker is used to protect people and not the equipment. The moment a person goes to touch it, it creates a circuit with the earth. The current instead of remaining in the domestic circuit, uses the human body to go to earth.
The residual current circuit breaker, also called circuit breaker, is a device in your electrical system. It is able to open the circuit, i.e. to interrupt the supply of energy, when the current is accidentally lost.
A pure residual current circuit breaker offers protection in case of current leakage but not in case of overvoltage. For this type of problem, a circuit breaker is required instead.
The AC residualcurrent circuit breaker operates only with alternating current. Almost all civil installations fall into this type.
Characteristics:
- Bticino series
- Voltage 400 Vac
- Current In 80A
- Differential current Idn 0.3A
- Type of AC differential
- 4 modules
- 4P
- Degree of protection IP20
- Height 83 mm
- Width 71.2 mm
- Depth 77.5 mm
- Maximum cable cross section 25/35 mmq
There are no reviews
Data sheet
- Voltage:
- 400VAC
- Modules:
- 4
- Poles:
- 4P
- RCD Type:
- AC
- Differential current :
- 0.3A
- Amps:
- 80A
- Circuit Protections:
- Residual current devices
