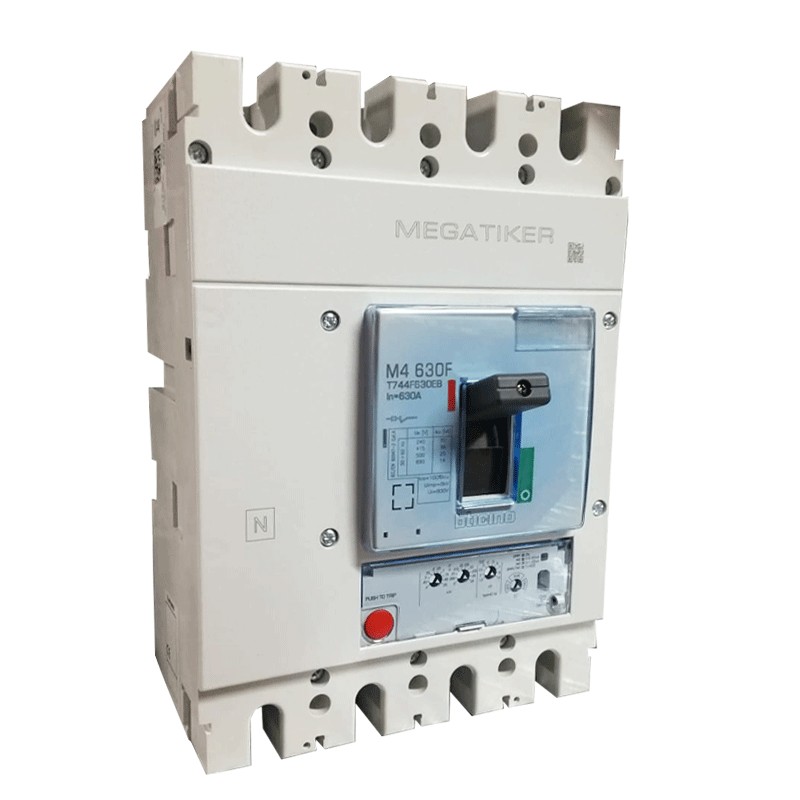

Bticino MEGATIKER electronic 630A moulded case circuit breaker T744F630EB
BTI T744F630EB
8005543544358
MEGATIKER M1 250B electronic moulded case circuit breaker (Li), with the following characteristics
- Voltage 690 Vac
- Current In 630A
- Interrupting power Icu 36kA
- 4 poles
€3,433.53
Items Available: 1
The moulded case circuit breakers, offer optimal solutions for all protection needs in industrial and tertiary contexts.
Features:
- Bticino series
- Voltage 690 Vac
- Current In 630A
- Interrupting capacity Icu 36kA
- Rated short-time withstand current Icw (kA) (for 0.5s) 5 (up to 400°)
- Insulation voltage Ui (V AC) 800
- Rated impulse withstand voltage Uimp (kV) 8
- Rated frequency 50-60 Hz
- Operating temperature (°C) -25 + 70
- Mechanical operations (cycles) 20000
- Mechanical operations with motor control (cycles) 10000
- Type of electronic protection
- 4 poles
- Weight 7.8 kg
- Height 260 mm
- Width 183 mm
- Depth 105 mm
There are no reviews
Data sheet
- Type: Switches
- Poles: 4P
- Breaking capacity: 36KA
- Amps: 630A
