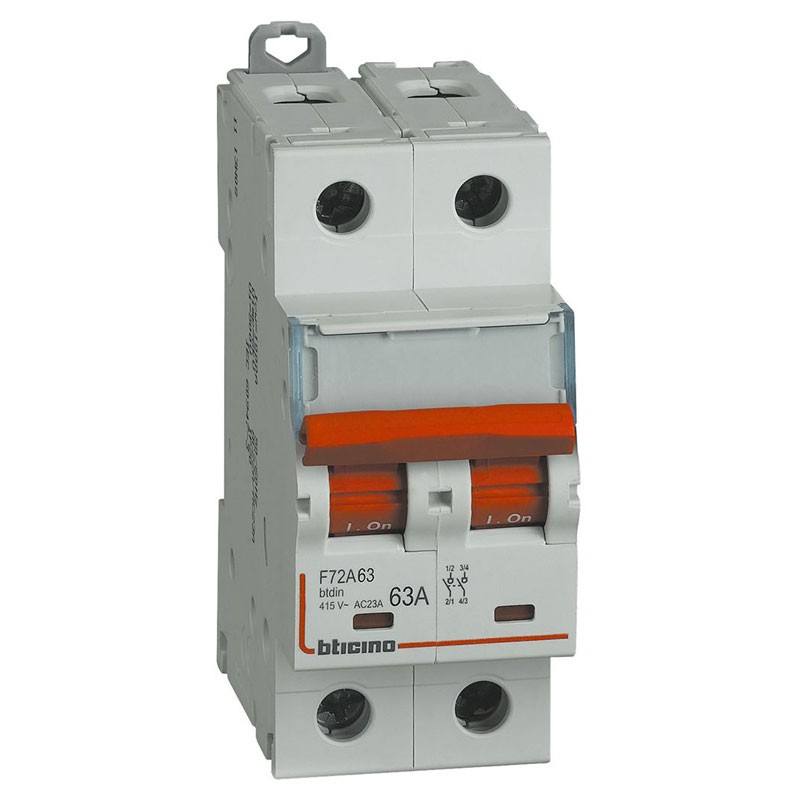

Bticino Modular Disconnect Switch 2P 63A 400Vac 2 modules IP20 F72A63

Bticino
Bticino
BTI F72A63 8005543489000

Bticino modular disconnector, which can be accessorized with auxiliary contacts and releases. Ideal for switchboard applications up to 400V, with the following features:

  • Rated current: 63A

  • Number of poles: 2P

  • Rated voltage: 400Vac

  • Number of modules: 2

  • Degree of protection: IP20

  • Mounting: DIN rail

Do you have questions about this product or did you not find what you were looking for? Ask us!
Bticino Modular Disconnect Switch 2P 63A 400Vac 2 modules IP20 F72A63
€50.03
€50.03

€50.03
Tax included
Calculate shipping cost
Items Available: 30
Further availability of the manufacturer
€50.03

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

BTicino 2P 63A modular disconnector: safety and control in electrical switchboards

The BTicino Btdin 2P 63A modular disconnector is a key component in electrical distribution systems, designed to ensure isolation and protection of lines and downstream devices. With its compact 2-module design, it easily finds its place in civil, tertiary and industrial switchboards, ensuring efficient and safe energy management.

Disconnection function and safe isolation

The main function of a disconnect switch is to safely interrupt the flow of current, ensuring reliable electrical isolation during maintenance work or when faults occur. This BTicino model makes it possible to physically separate the power supply from a section of the system, ensuring the protection of people and equipment.

Accessorizability: maximum versatility of use

One of the main advantages of this device is its accessorizability: auxiliary contacts and releases can be integrated, expanding its control and monitoring functions within automated or supervisory installations. This feature makes it ideal for complex or highly critical installations.

Compact, reliable, regulatory compliant

With a width of 35.6 mm, height of 83 mm and depth of 74 mm, the disconnector is easily installed on a DIN rail and fully complies with CEI EN 60947-3 and CEI EN 60669-1, which regulate the safety and reliability of switching and disconnection devices in electrical panels.

Technical Specifications Bticino Disconnect Switch

ParameterValue
Rated current (In) 63 A
Poles 2P
Rated voltage 400 V AC
Number of DIN modules 2
Accessory Yes, with auxiliary contacts and circuit breakers
Degree of protection IP20
Mounting DIN rail
Reference standards CEI EN 60947-3 / CEI EN 60669-1
Height 83 mm
Width 35.6 mm
Depth 74 mm

Prodotti BTicino sono sempre una garanzia di affidabilità

Tutto ok. Installato facilmente e in maniera veloce.

Read all reviews

Data sheet

Voltage:
400VAC
Modules:
2
Poles:
2P
Amps:
63A
Circuit Protections:
Disconnectors
Operating voltage:
AC
