Bticino differential thermomagnetic 32A 1P+N 4.5KA GC8813AC32

BTI GC8813AC32 8005543532522

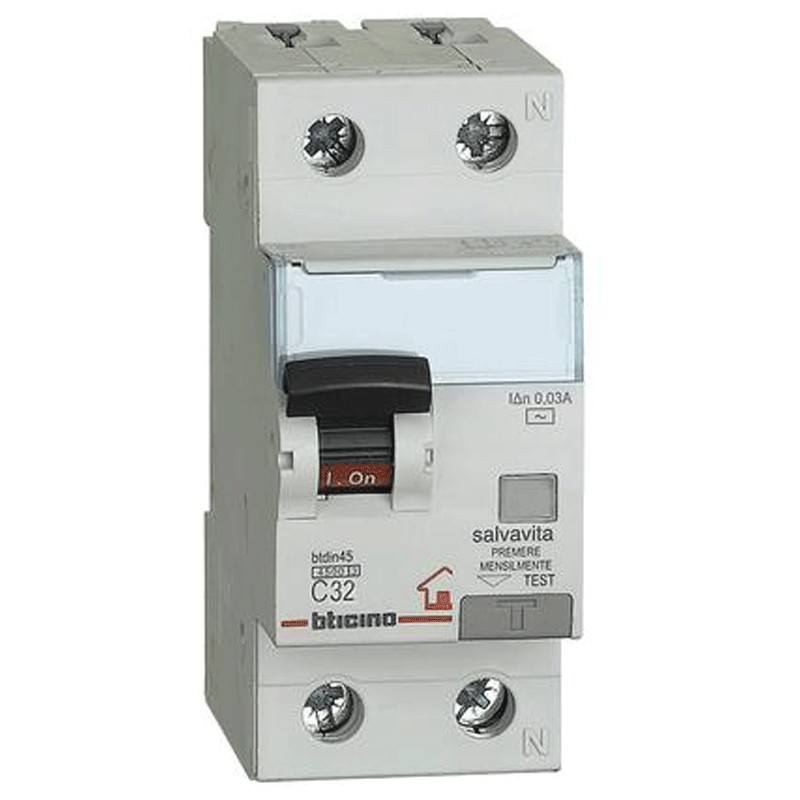

Bticino differential thermomagnetic circuit breaker, 2 modules, DIN connection (universal for any switchboard on the market), poles 1P+N, 32 amperes, breaking capacity 4.5kA, voltage 230 Vac, differential current Idn 0.03A, AC type, trip curve C.

Request info about this product

Bticino differential thermomagnetic 32A 1P+N 4.5KA GC8813AC32


Bticino differential thermomagnetic 32A 1P+N 4.5KA GC8813AC32

Tax included
klarna Pay in installments with Klarna

Bticino differential thermomagnetic 32A 1P+N 4.5KA GC8813AC32


Buy it within and receive it from Thursday, 20 June
Two-year warranty
Secure Payment
Easy return within 14 days

The thermomagnetic circuit breaker is located next to the circuit breaker and integrates a magnetic protection with a thermal one and interrupts the electric current if necessary.

The thermal magnetic circuit breaker is, therefore, a system that combines the functions of the circuit breaker with magnetic and thermal characteristics.

The thermal-magnetic differential switch present in the electrical system integrates three different protections

  • the magnetic one for short circuits that can put an entire building at risk of fire;
  • the thermal one for overloads in the supply of electrical energy (for example more than one household appliance in operation);
  • the differential one, typical of the lifesaver, which protects the subject from a current leakage.

The AC type differential switch intervention is ensured for sinusoidal alternating currents applied suddenly or slowly increasing (CEI EN 61008-1).


  • Bticino series
  • Voltage 230 Vac
  • Current In 32A
  • Interrupting capacity Icn 4,5kA
  • Intervention curve C
  • Differential current Idn 0.03A
  • Type of AC differential
  • 2 modules
  • 1P+N poles

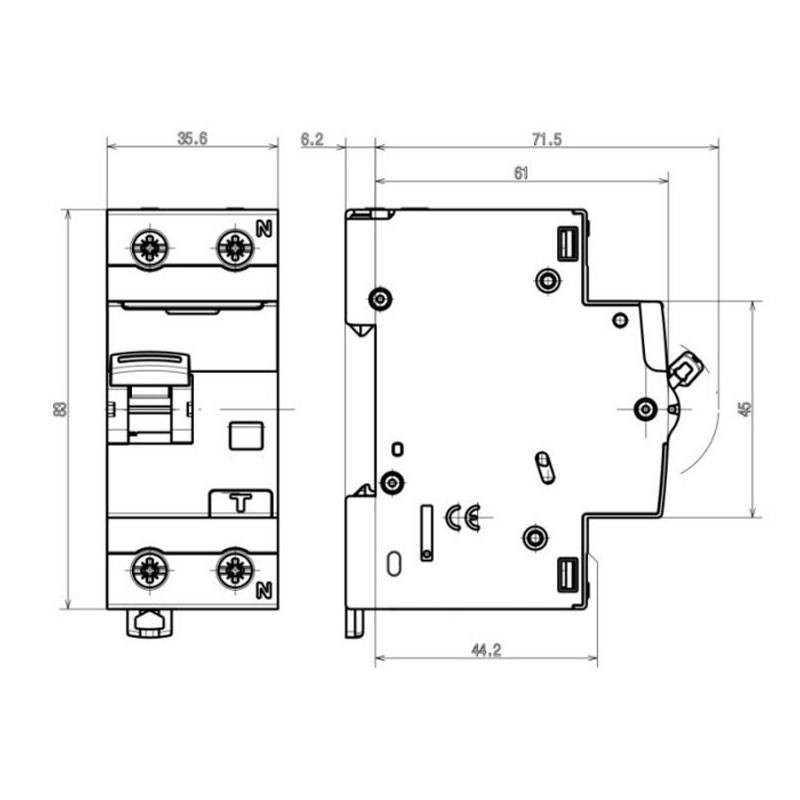

  • Height 83 mm
  • Width 35.6 mm
  • Depth 76 mm
  • Maximum cable section 25/35mmq
  • Degree of protection IP20
