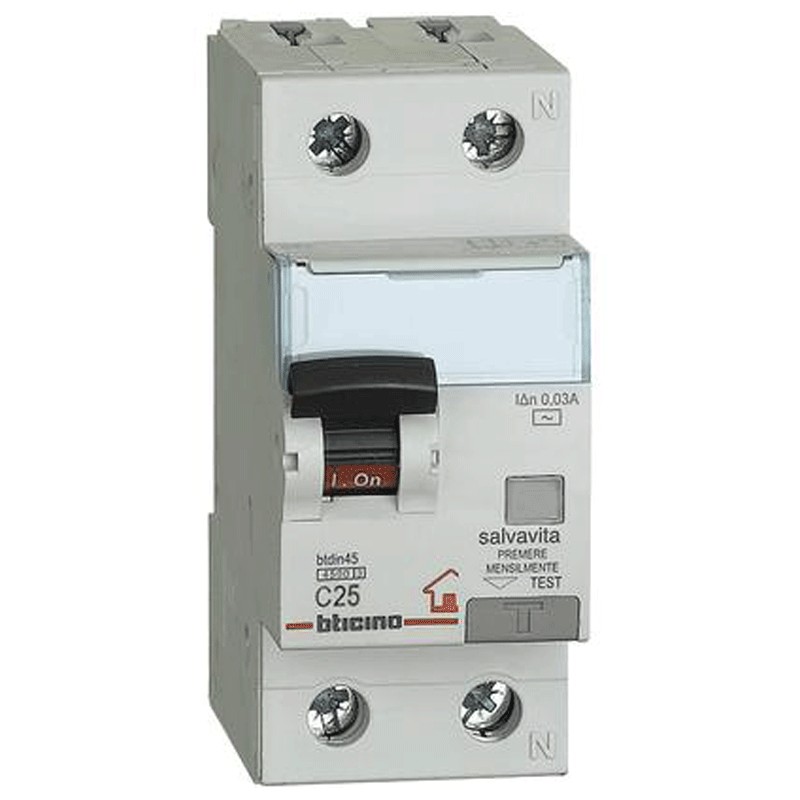

Bticino residual current circuit breaker 25A 1P+N 4.5KA GC8813AC25
BTI GC8813AC25
8005543532515
Bticino BTDIN Residual current circuit breaker, provides protection against overcurrents and leakage, ensuring safety and efficiency in electrical circuits. Ideal for civil and industrial installations, it offers reliable protection of people and equipment, with the following features:
-
Rated current: 25 amps
-
Number of poles: 1P+N
-
Operating voltage: 230V
-
Interrupting capacity: 4.5 kA
-
Differential current: 30 mA
-
Tripping curve: C
-
Differential type: AC
-
Number of modules: 2
-
Degree of protection: IP20
€22.84
Items Available: 746
: 336
Bticino Residual current circuit breaker Protection and Operation
Protection and safety for electrical systems
The Bticino Residual current circuit breaker is designed to offer complete protection in electrical circuits. Its dual magnetothermal and differential function allows it to intervene in both overcurrents and leakage, preventing faults and possible electrical accidents.
Operation of the AC-type Residual current circuit breaker
This device is AC type, so it is sensitive to sine-sine alternating differential currents, ensuring rapid tripping in both sudden leakage and gradual increases, ensuring high safety standards.
Compact Structure, Easy Installation and Applications
Compact structure and easy installation
The circuit breaker is designed in 2 Modules, making it compatible with most standard electrical panels. With compact dimensions, it offers quick and easy installation. It can be connected with conductors up to 25/35 sq. mm, ensuring versatility and adaptability.
Applications and use
Suitable for residential, commercial and industrial installations, it protects people and equipment from overloads and current leakage. It is ideal for isolating and controlling electrical circuits, reducing the risks of direct and indirect contact with live parts.
Features of the Bticino Residual current circuit breaker
| Feature | Value |
|---|---|
| Rated current | 25A |
| Number of poles | 1P+N |
| Voltage | 230V AC |
| Differential current | 30 mA |
| Breaking capacity | 4.5 kA |
| Tripping curve | C |
| Type of differential | AC |
| Number of modules | 2 |
Installation and Protection
| Feature | Value |
|---|---|
| Degree of protection | IP20 |
| Maximum cable cross section | 25/35 mm² |

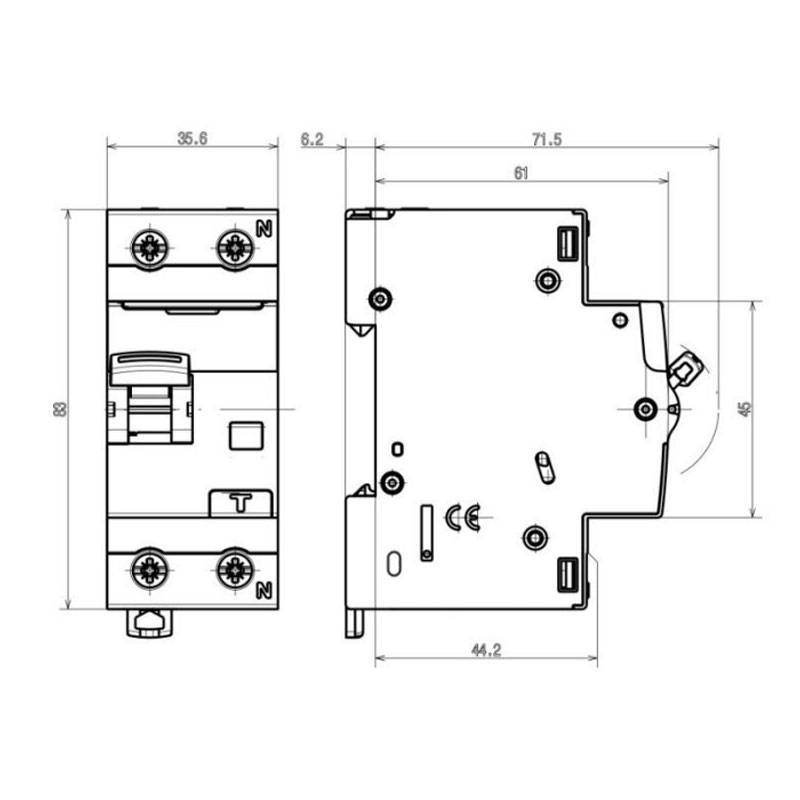

Dimensions
| Feature | Value |
|---|---|
| Height | 83 mm |
| Width | 35.6 mm |
| Depth | 76 mm |
Sono prodotti conosciuti e sicuri della loro efficienza.
Ho rinnovato e ampliato il quadro elettrico vecchio di 25 anni, sono soddisfatto di aver trovato ancora la stessa marca e modelli, tutto perfetto e funzionante.
TUTTO OK PRODOTTO SECONDO LA DESCRIZIONE
Prodotto come lo desideravo e ideale per il mio utilizzo. Confezione ok.
Senza dubbio comodo e veloce. Se non si ha tempo di girare per negozi qui hai tutto a disposizione e ben descritto.
magneti termico differenziale basico che va bene per chi non ha elettrodomestici con inverter
Soddisfatto del materiale arrivato. Ottimo imballaggio
Ottimo prodotto istallazione sempre precisa e facile biticino non sbaglia
Ottimo componente elegante e finissimo da comprare
Prodotto consono alla descrizione e alle immagini, ottima qualità e prezzo!
Data sheet
- Modules: 2
- Poles: 1P+N
- Curve: C
- Breaking capacity: 4.5KA
- RCD Type: AC
- Differential current : 0.03A
- Amps: 25A
- Circuit Protections: RCBO
