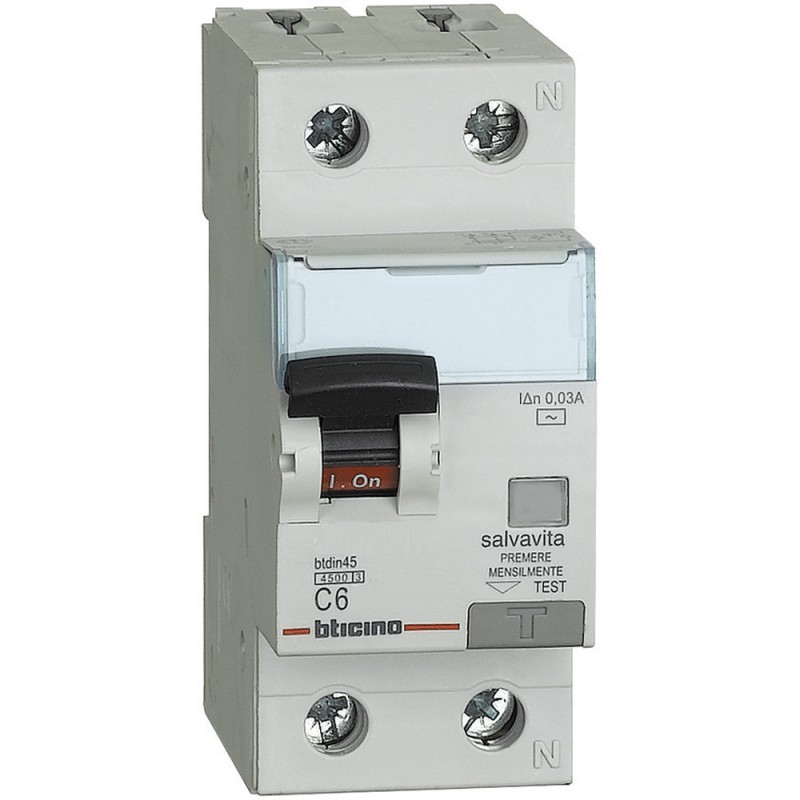

Bticino differential thermomagnetic 1P+N AC 6A 4,5kA 30mA GA8813AC6
Bticino differential thermomagnetic circuit breaker, 2 modules, DIN connection (universal for any switchboard on the market), poles 1P+N, 6 amperes, breaking capacity 4.5kA, voltage 230 Vac, differential current Idn 0.03A, AC type, trip curve C.
Bticino differential thermomagnetic 1P+N AC 6A 4,5kA 30mA GA8813AC6
Tax included
The thermomagnetic circuit breaker is located next to the circuit breaker and integrates a magnetic protection with a thermal one and interrupts the electric current if necessary.
The thermal magnetic circuit breaker is, therefore, a system that combines the functions of the circuit breaker with magnetic and thermal characteristics.
The thermal-magnetic differential switch present in the electrical system integrates three different protections
- the magnetic one for short circuits that can put an entire building at risk of fire;
- the thermal one for overloads in the supply of electrical energy (for example more than one household appliance in operation);
- the differential one, typical of the lifesaver, which protects the subject from a current leakage.
The AC type differential switch intervention is ensured for sinusoidal alternating currents applied suddenly or slowly increasing (CEI EN 61008-1).
Features:
- Bticino series
- Voltage 230 Vac
- Current In 6A
- Interrupting capacity Icn 4,5kA
- Intervention curve C
- Differential current Idn 0.03A
- Type of AC differential
- 2 modules
- 1P+N poles

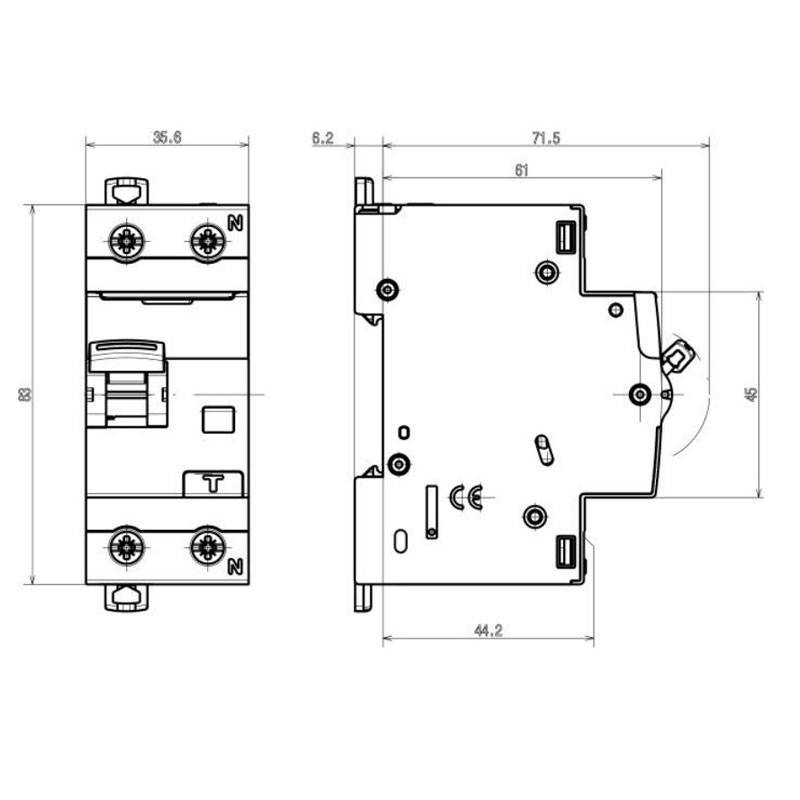

- Height 83 mm
- Width 35.6 mm
- Depth 76 mm
- Maximum cable section 25/35mmq
- Degree of protection IP20
Data sheet
- Modules:
- 2
- Poles:
- 1P+N
- Curve:
- C
- Power:
- 4.5KA
- RCD Type:
- AC
- Differential current :
- 0.03A
- Amps:
- 6A
- Circuit Protections:
- RCBO
