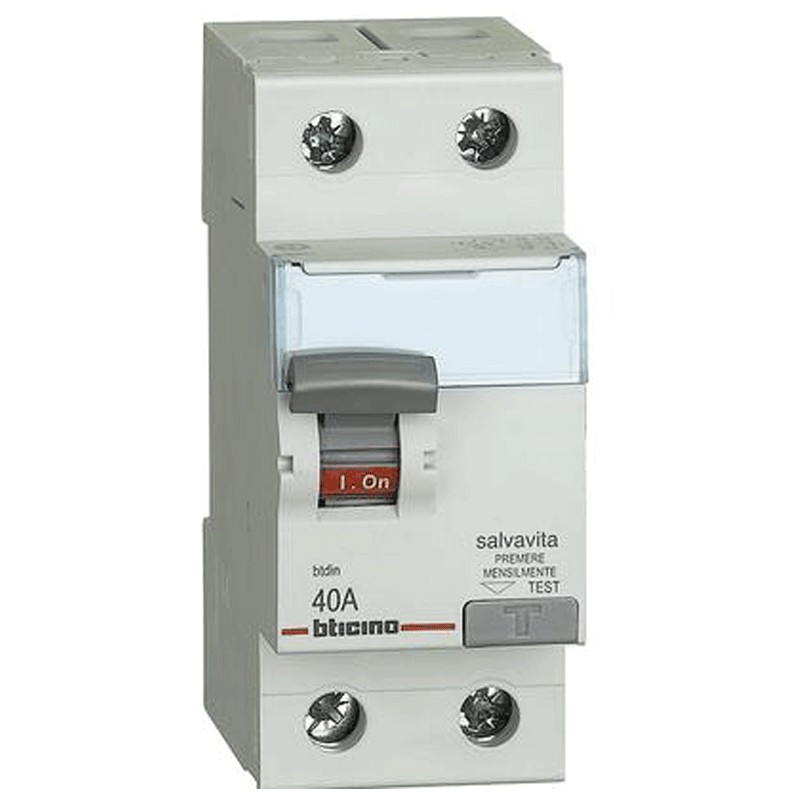

Bticino differential circuit breaker 40A AC 300MA G724AC40
Pure differential switch (life-saving) Bticino, 2 modules, DIN connection (universal for any switchboard on the market), 2P poles, 40 amperes, differential current Idn 0.3A, voltage 230/400 Vac, AC differential type.
Bticino differential circuit breaker 40A AC 300MA G724AC40
Tax included
The pure earth leakage pure residual current circuit breaker serves to protect people and not installations. The moment a person touches it, it creates a circuit with the ground. The current instead of staying in the home circuit, uses the human body to go to ground.
The residual current circuit breaker, also called circuit breaker, is a device in your electrical system. It is able to open the circuit, i.e. to interrupt the supply of energy, when the current is accidentally lost.
A pure residual current circuit breaker offers protection in case of current leakage but not in case of overvoltage. For this type of problem, a circuit breaker is required instead.
The AC residualcurrent circuit breaker operates only with alternating current. Almost all civil installations fall into this type.
Characteristics:
- Bticino series
- Voltage 230/400 Vac
- Current In 40A
- Differential current Idn 0,3A
- AC differential type
- 2 modules
- 2P
- Degree of protection IP20
- Height 83 mm
- Width 35.6 mm
- Depth 76 mm
- Maximum cable section 25/35 sq. mm
Data sheet
- Voltage:
- 230/400VAC
- Modules:
- 2
- Poles:
- 2P
- RCD Type:
- AC
- Differential current :
- 0.3A
- Amps:
- 40A
- Circuit Protections:
- Residual current devices
