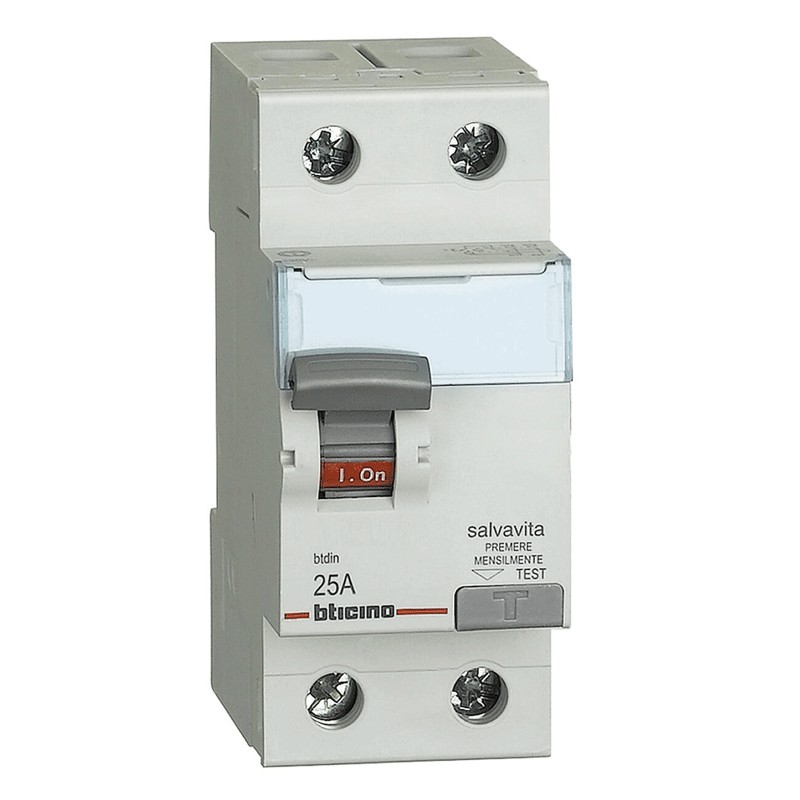

Bticino differential circuit breaker 25A A 30MA G723A25
BTI G723A25
8005543459386
Pure differential switch (life-saving) Bticino, 2 modules, DIN connection (universal for any switchboard on the market), 2P poles, 25 amperes, differential current Idn 0.03A, voltage 230/400 Vac, differential type A.
Bticino differential circuit breaker 25A A 30MA G723A25
€132.96
€132.96
Tax included
Tax included
Pay in installments with Klarna
Items Available: 11
The pure earth leakage circuit breaker is used to protect people and not the equipment. The moment a person goes to touch it, it creates a circuit with the earth. The current instead of remaining in the domestic circuit, uses the human body to go to earth.
The residual current circuit breaker, also called circuit breaker, is a device in your electrical system. It is able to open the circuit, i.e. to interrupt the supply of energy, when the current is accidentally lost.
A pure residual current circuit breaker offers protection in case of current leakage but not in case of overvoltage. For this type of problem, a circuit breaker is required instead.
The residualcurrent circuit breaker type A, guarantees operation for AC and unidirectional pulsating type currents.
Features:
- Bticino series
- Voltage 230/400 Vac
- Current In 25A
- Differential current Idn 0,03A
- Differential type A
- 2 modules
- 2P
- Degree of protection IP20
- Height 83 mm
- Width 35.6 mm
- Depth 76 mm
- Maximum cable section 25/35 sq. mm
Il prodotto in apparenza è come nelle aspettative. Faccio presente che il prodotto non è stato ancora utilizzato, causa festività.
il prodotto è ottimo... una volta installato fa il suo dovere
E' insensibile ai disturbi.
Lo consiglio
Data sheet
- Voltage:
- 230/400VAC
- Modules:
- 2
- Poles:
- 2P
- RCD Type:
- A
- Differential current :
- 0.03A
- Amps:
- 25A
- Circuit Protections:
- Residual current devices
