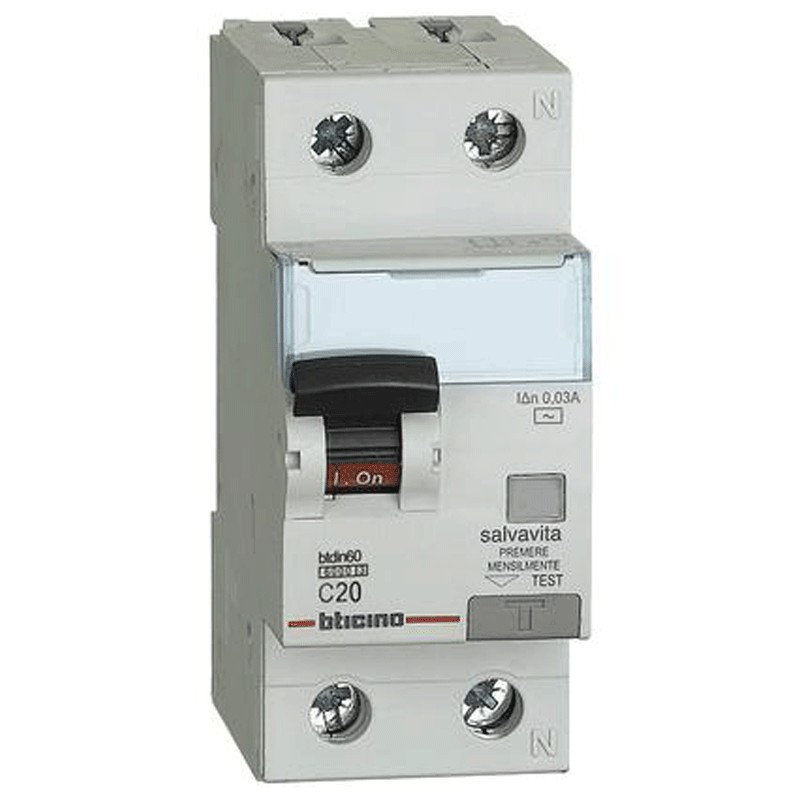

Bticino residual current operated circuit breaker 1P+N 20A 30mA AC Type 6kA 2 modules GN8813AC20
BTI GN8813AC20
8005543458693
Bticino residual current operated circuit breaker, offers complete protection for civil and industrial electrical systems. It provides safety against short circuits, overloads and current leakage, to protect mixed loads, with the following characteristics:
-
Rated current: 20 amps
-
Number of poles: 1P+N
-
Operating voltage: 230V
-
Breaking capacity: 6 kA
-
Differential current: 30 mA
-
Tripping curve: C
-
Differential type: AC
-
Number of modules: 2
-
Degree of protection: IP20
€137.18
Items Available: 13
: 1
Bticino Residual current operated circuit breaker Protection and Operation
Protection and safety for electrical systems
The Bticino circuit breaker is designed to offer complete protection in electrical circuits. Its dual magnetothermal and differential function allows it to intervene in both overcurrents and leakage, preventing faults and possible electrical accidents.
Operation of the AC-type circuit breaker
This device is AC type, so it is sensitive to sine-sine alternating differential currents, ensuring rapid tripping in both sudden leakage and gradual increases, ensuring high safety standards.
Compact Structure, Easy Installation and Applications
Compact structure and easy installation
The circuit breaker is designed in 2 Modules, making it compatible with most standard electrical panels. With compact dimensions, it offers quick and easy installation. It can be connected with conductors up to 25/35 sq. mm, ensuring versatility and adaptability.
Applications and use
Suitable for residential, commercial and industrial installations, it protects people and equipment from overloads and current leakage. It is ideal for isolating and controlling electrical circuits, reducing the risks of direct and indirect contact with live parts.
Features of the Bticino RCBO
| Feature | Value |
|---|---|
| Rated current | 20A |
| Number of poles | 1P+N |
| Voltage | 230V AC |
| Differential current | 30 mA |
| Breaking capacity | 6 kA |
| Tripping curve | C |
| Type of differential | AC |
| Number of modules | 2 |
Installation and Protection
| Feature | Value |
|---|---|
| Degree of protection | IP20 |
| Maximum cable cross section | 25/35 mm² |

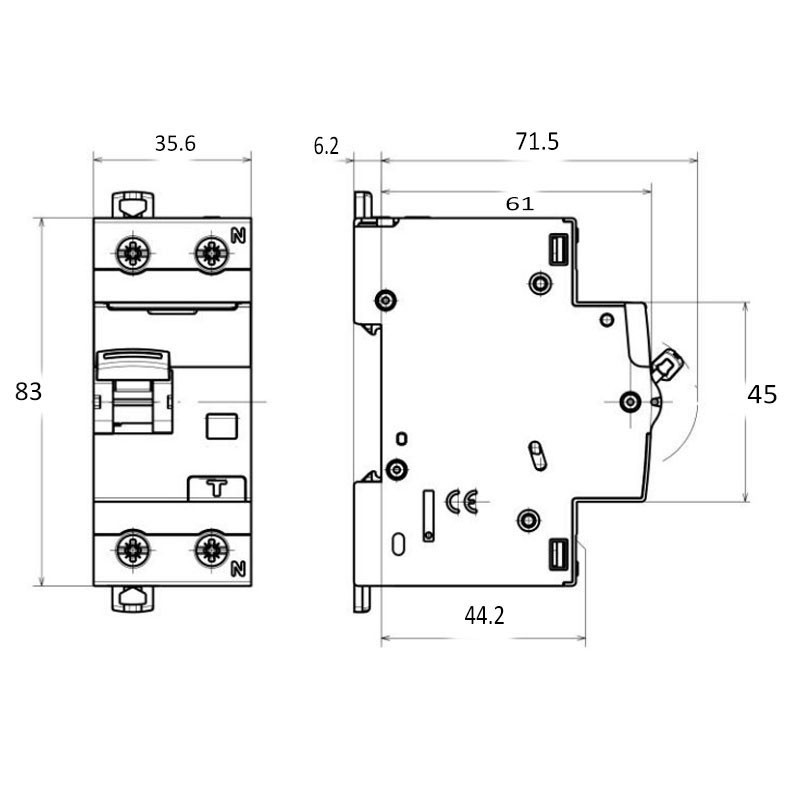

Dimensions
| Feature | Value |
|---|---|
| Height | 83 mm |
| Width | 35.6 mm |
| Depth | 76 mm |
There are no reviews
Data sheet
- Modules: 2
- Poles: 1P+N
- Curve: C
- Breaking capacity: 6KA
- RCD Type: AC
- Differential current : 0.03A
- Amps: 20A
- Circuit Protections: RCBO
