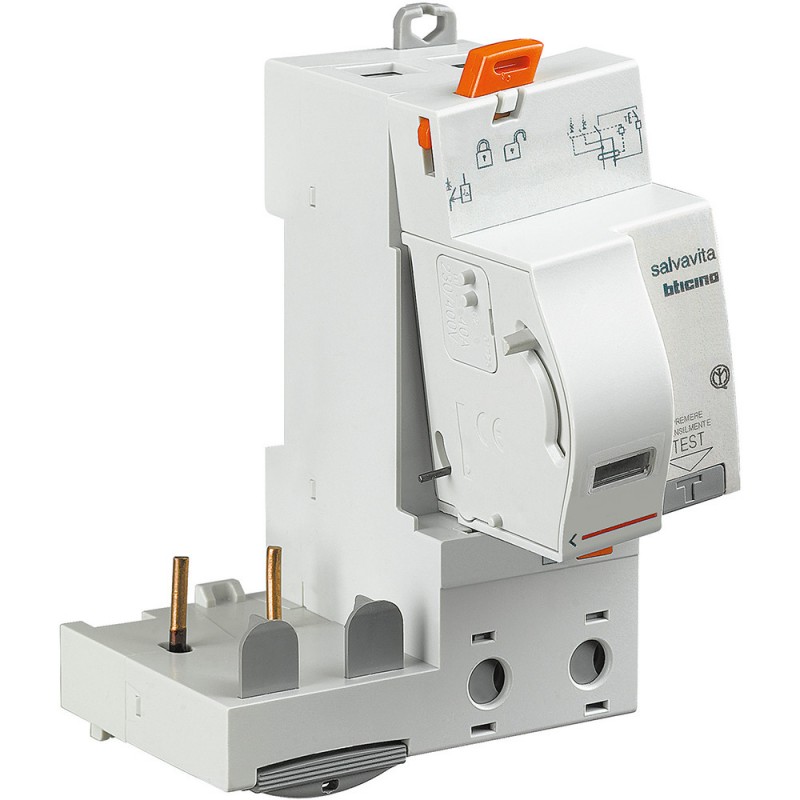

Bticino differential block 2P 32A A 300MA G24A32
BTI G24A32
8005543462898
Differential block (circuit breaker) Bticino, with the following characteristics:
- 2 modules
- DIN connection (universal for any switchboard on the market)
- 2 poles
- 32 amperes
- Idn differential current 300mA
- Voltage 230/400 Vac
- Type of differential A
€116.93
Items Available: 15
: 2
The differential blocks are mechanically designed to prevent a wrong coupling between the block and the circuit breaker: the power of the block must always be equal or greater than that of the circuit breaker. The lateral plastic clamp allows a quicker assembly of the block on the circuit breaker and a push button prevents possible interventions.
It is used to protect human health in case of earth fault (electrical leakage) or phase-to-earth electrocution, thus providing protection also against macro electrical shock, both direct and indirect, on exposed persons.
The differential block type A, ensures operation for AC and unidirectional pulsating type currents.
Features:
- Bticino series
- Voltage 230/400Vac
- Current In 32A
- Current differential Idn 300mA
- Differential type A
- 2 modules
- 2 poles
- Degree of protection IP20
- Height 83 mm
- Width 35,6 mm
- Depth 76 mm
- Maximum cable section 25/35 mmq
Data sheet
- Voltage: 230/400VAC
- Modules: 2
- Poles: 2P
- RCD Type: A
- Differential current : 0.3A
- Amps: 32A
- Circuit Protections: Earth Leakage add-on Blocks
