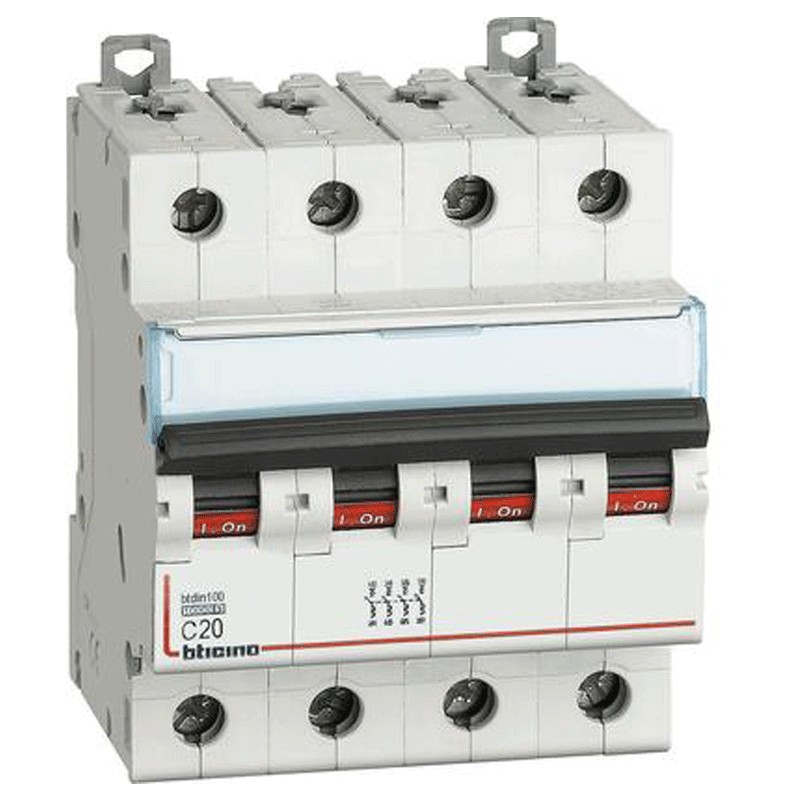

Bticino Circuit breaker 4-pole 20A curve C 10kA FH84C20


BTI FH84C20 8005543475201

Bticino circuit breaker, 4 modules, DIN connection (universal for any switchboard on the market), poles 4P, 20 amperes, breaking capacity 10kA, voltage 400 Vac, curve C.

Request info about this product

Bticino Circuit breaker 4-pole 20A curve C 10kA FH84C20

€129.63 Tax included
€129.63

Bticino Circuit breaker 4-pole 20A curve C 10kA FH84C20

€129.63
Tax included
klarna Pay in installments with Klarna
Items Available: 8
qty

Bticino Circuit breaker 4-pole 20A curve C 10kA FH84C20

€129.63

Buy it within and receive it from Wednesday, 31 May
Two-year warranty
Secure Payment
Easy return within 14 days

The C-curve can tolerate short-term overcurrents of up to five to ten times the rated current and is widely used in domestic installations.




A circuit breaker is a safety device that can automatically (i.e. without external intervention) interrupt the flow of electrical current in an electrical circuit in the event of an overcurrent.





Features:



  • Bticino series
  • Voltage 400 Vac
  • Current In 20A
  • Interrupting capacity Icn 10kA
  • Tripping curve C
  • 4 modules
  • Poles 4P
  • Degree of protection IP20
  • Height 83 mm
  • Width 71.2 mm
  • Depth 76 mm
  • Maximum cable cross-section 25/35 sq. mm

Data sheet

Voltage:
400VAC
Modules:
4
Poles:
4P
Curve:
C
Power:
10KA
Amps:
20A
Circuit Protections:
Circuit breakers
