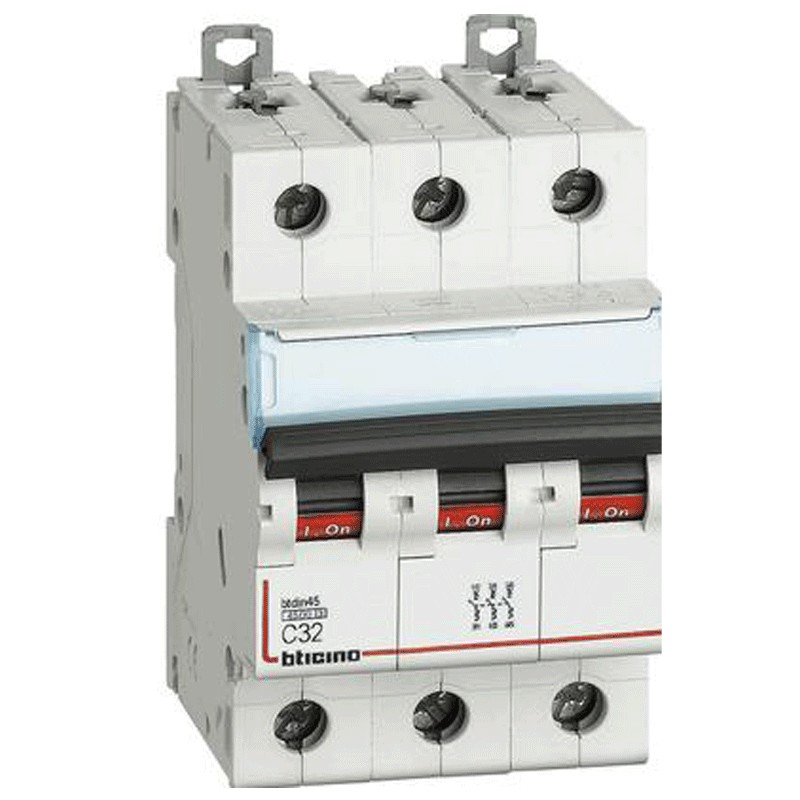

Bticino circuit breaker 3-pole 32A C curve 4,5 kA FA83C32
BTI FA83C32
8005543472101
Bticino thermal-magnetic circuit breaker, 3 modules, DIN connection (universal for any switchboard on the market), poles 3P, 32 amperes, breaking capacity 4.5 kA, voltage 400 Vac, curve C.
![](https://www.elettronew.com/39071-large_default/bticino-circuit-breaker-3-pole-32a-c-curve-45-ka-fa83c32.jpg)
Bticino circuit breaker 3-pole 32A C curve 4,5 kA FA83C32
€61.95
€61.95
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 11
The C-curve can tolerate short-term overcurrents of up to five to ten times the rated current and is widely used in domestic installations.
A circuit breaker is a safety device that can automatically (i.e. without external intervention) interrupt the flow of electrical current in an electrical circuit in the event of an overcurrent.
Features:
- Bticino series
- Voltage 400 Vac
- Current In 32A
- Interrupting capacity Icn 4,5kA
- Tripping curve C
- 3 modules
- Poles 3P
- Degree of protection IP20
- Height 83 mm
- Width 53.4 mm
- Depth 76 mm
- Maximum cable cross-section 25/35 sq. mm
Data sheet
- Voltage:
- 400VAC
- Modules:
- 3
- Poles:
- 3P
- Curve:
- C
- Breaking capacity:
- 4.5KA
- Amps:
- 32A
- Circuit Protections:
- Circuit breakers
